Trelleborg multi-size plugs with a larger bypass PLUGSY VP cover the ranges from 100 mm (4″) up to 1800 mm (72″).
A replaceable rubber sleeve is reinforced with aramid cord and ensures safe and simple handling.
Plugs are available in three different designs, depending on the conditions and bypass requirements.
PLUGSY VP - Bypass Plug
|
PART NUMBER |
NOMINAL SIZE |
SIZE USAGE RANGE |
REQUIRED
INFLATION PRESSURE [bar] / [psi] |
DEFLATED PLUG |
PRODUCT
WEIGHT [kg] / [lbs] |
EYE BOLT |
INFLATION VALVE |
BYPASS DIAMETER (FEMALE) |
||
|---|---|---|---|---|---|---|---|---|---|---|
|
MIN. DIA.
[mm] / [inch] |
MAX. DIA.
[mm] / [inch] |
DIAMETER
[mm] / [inch] |
RUBBER |
M THREAD | THREAD SIZE | |||||
| 516942 | 100-150 / 4”-6” | 98 / 4” | 150 / 6” | 2.5 / 36 | 88 / 3.5” | 370 / 15” | 2.2 / 5 | M 6 | Not removable | 2” |
| 516943 | 150-250 / 6”-10” | 148 / 6” | 250 / 10” | 2 / 29 | 136 / 5.4” | 520 / 21” | 4.6 / 10 | M 6 | Not removable | 3” (2”) |
| 520334 | Bypass adapter R2” for PLUGSY 150-250 / 6”-10” VP1 | |||||||||
| 516944 | 200-300 / 8”-12” | 198 / 8” | 300 / 12” | 2 / 29 | 186 / 7.3” | 550 / 22” | 7.6 / 17 | M 6 | Not removable | 4” (2”) |
| 520341 | Bypass adapter R2” for PLUGSY 200-300 / 8-12” VP1 | |||||||||
| 60967 | 150-300 / 6”-12” | 150 / 6” | 300 / 12” | 1.5 / 22 | 142 / 5.6” | 540 / 21” | 3.6 / 8 | M 8 | - | 2” |
| 514953 | Bypass adapter R2” for PLUGSY 150-300 / 6”-12” VP2 | |||||||||
| 60968 | 200-400 / 8”-16” | 200 / 8” | 400 / 16” | 1.5 / 22 | 192 / 7.6” | 600 / 25” | 6.1 / 26 | M 8 | - | 4” (2”) |

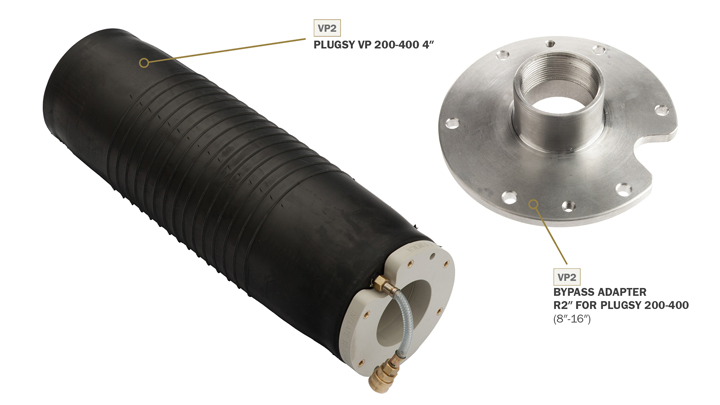

| 520344 | Bypass adapter R2” for PLUGSY 200-400 / 8”-16” VP2 | |||||||||
| 514954 | Bypass adapter R4” for PLUGSY 200-400 / 8”-16” VP2 | |||||||||
| 533539 | 300-525 / 12”-21” | 300 / 12” | 525 / 21” | 1.5 / 22 | 272 / 10.7” | 630 / 25” | 11.7 / 35 | M 10 | R 1/4” | 6” (4”, 2”) |
| 534617 | By pass adapter R4” for PLUGSY 300-525 / 12”-21” VP2 | |||||||||
| 534615 | By pass adapter R6” for PLUGSY 300-525 / 12”-21” VP2 | |||||||||
| 60970 | 350-600 / 14”-24” | 350 / 14” | 600 / 24” | 1.5 / 22 | 322 / 12.7” | 830 / 33” | 17 / 38 | M 10 | R 1/4” | 6” (4”, 2”) |
| 520347 | Bypass adapter R4” for PLUGSY 350-600 / 14”-24” VP2 | |||||||||
| 514955 | Bypass adapter R6” for PLUGSY 350-600 / 14”-24” VP2 | |||||||||
| 60971 | 500-1000 / 20”-40” | 500 / 20” | 1000 / 40” | 1.5 / 22 | 472 / 18.6” | 1150 / 45” | 37.5 / 83 | M 10 | R 1/4” | 8” (6”, 4” ,2”) |
| 520349 | Bypass adapter R4” for PLUGSY 500-1000 / 20”-40” VP2 | |||||||||
| 520348 | Bypass adapter R6” for PLUGSY 500-1000/ 20”-40” VP2 | |||||||||
| 514956 | Bypass adapter R8” for PLUGSY 500-1000/ 20”-40” VP2 | |||||||||
| 535873 | 600-1200 / 24”-48” | 600 / 24” | 1200 / 48” | 1.5 / 22 | 574 / 22.6” | 1450 / 57” | 65.1 / 144 | M 12 | 2 x R 3/8“ | 6“ |
| 535874 | 600-1200 / 24”-48” | 600 / 24” | 1200/ 48” | 1.5 / 22 | 574 / 22.6” | 1450 / 57” | 70.5 / 155 | M 12 | 2 x R 3/8“ | 8“ |
| 535876 | 750-1500 / 30”-60” | 750 / 30” | 1500 / 60” | 1 / 15 | 600 / 23.6” | 2300 / 91” | 79 / 174 | M 12 | 2 x R 1/2“ | 6“ |
| 535878 | 750-1500 / 30”-60” | 750 / 30” | 1500 / 60” | 1 / 15 | 600 / 23.6” | 2300 / 91” | 83 / 183 | M 12 | 2 x R 1/2“ | 8“ |
| 535879 | 800-1800 / 32”-72” | 800 / 32” | 1800 / 72” | 1 / 15 | 600 / 23.6” | 3000 / 118” | 121 / 267 | M 12 | 2 x R 1/2“ | 6“ |
| 535880 | 800-1800 / 32”-72” | 800/ 32” | 1800 / 72” | 1 / 15 | 800 / 31.5” | 3000 / 118” | 125 / 276 | M 12 | 2 x R 1/2“ | 8“ |
| VP1 | VP1 Plugs are supplied with a thread, a bypass adapter needed only if reducing the bypass size | |||||||||
| VP2 | VP2 Plugs are supplied without a thread, therefore a bypass adapter is always required to ensure full functionallity, it is sold separatelly in different sizes | |||||||||
| VP3 | VP3 Plugs are supplied with a built-in adapter, which is included in plug’s price | |||||||||
Back Pressures[Bar] / [Psi]* - PLUGSY VP
| PLUG SIZE | PIPE DIAMETER [mm] / [inch] | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 / 4” | 150 / 6” | 200 / 8” | 250 / 10” | 300 / 12” | 350 / 14” | 400 / 16” | 500 / 20” | 600 / 24” | 700 / 28” | 800 / 32” | 900 / 35” | 1000 / 40” | |
| 100–150 / 4"-6" | 1.0/15 | 0.8/12 | |||||||||||
| 150–250 / 6"-10" | 1.0/15 | 0.8/12 | 0.6/9 | ||||||||||
| 200–300 / 8"-12" | 1.0/15 | 0.8/12 | 0.6/9 | ||||||||||
| 150–300 / 6"-12" | 1.0/15 | 0.8/12 | 0.7/10 | 0.6/9 | |||||||||
| 200–400 / 8"-16" | 1.1/16 | 0.9/13 | 0.7/10 | 0.6/9 | 0.6/9 | ||||||||
| 300–525 / 12"-21" | 1.0/15 | 0.9/13 | 0.7/10 | 0.5/7 | |||||||||
| 350–600 / 14"-24" | 0.9/13 | 0.8/12 | 0.7/10 | 0.6/9 | |||||||||
| 500–1000 / 20"-40" | 1.1/16 | 0.9/13 | 0.8/12 | 0.7/10 | 0.6/9 | 0.6/9 | |||||||
Back Pressures[Bar] / [Psi]* - PLUGSY VP
| PLUG SIZE | PIPE DIAMETER [mm] / [inch] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 600 / 24” | 800 / 32” | 1000 / 40” | 1200 / 48” | 1300 / 51” | 1400 / 55” | 1500 / 60” | 1600 / 63” | 1700 / 67” | 1800 / 72” | |
| 600-1200 / 24"-48" | 1.0/15 | 0.8/12 | 0.6/9 | 0.5/7 |
|
|
|
|
|
|
| 750-1500 / 30"-60" |
|
1.0/15 | 0.9/13 | 0.7/10 | 0.6/9 | 0.5/7 | 0.4/6 |
|
|
|
| 800-1800 / 32"-72" |
|
1.0/15 | 1.0/15 | 0.8/12 | 0.8/12 | 0.7/10 | 0.6/9 | 0.5/7 | 0.4/6 | 0.4/6 |
Coupling System
Type 26
Accessories
Single Fitting Controller
0.9 kg (2 lbs)
2.5 bar (36 psi) - 60310
2.0 bar (29 psi) - 565643
1.5 bar (22 psi) - 74609
1.0 bar (15 psi) - 74653
Hand held controller 1 HND
2.5 bar (36 psi) 628111
2.0 bar (29 psi) 628295
1.5 bar (22 psi) 628297
1.0 bar (15 psi) 628298
2.0 bar (29 psi) 628295
1.5 bar (22 psi) 628297
1.0 bar (15 psi) 628298
Inflation Hose Grey
10 m (33’)
1.2 kg (2.6 Ibs)
614341
Poly Lift Inflation Hose
10 m (33’), 2.4 kg (5.3 lbs)
615288
