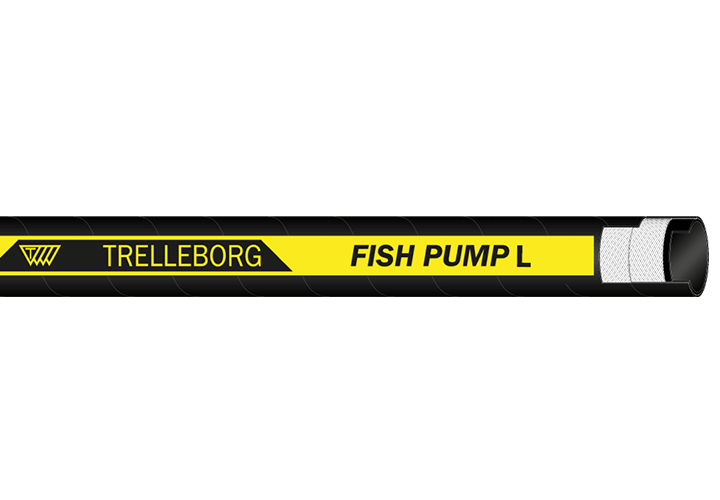

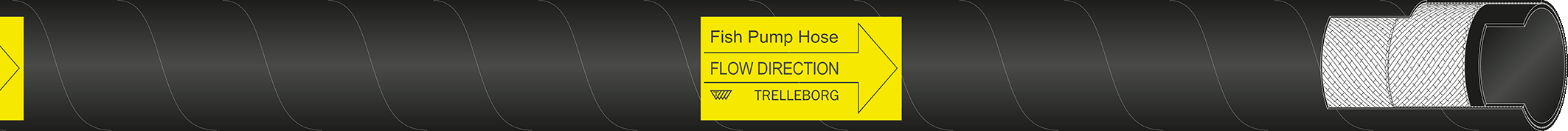

Applications
Used for pumping fish in fish farms and fish processing factories.
Flat-rolled hose.
Unique and patented solution for applications requiring long lengths.
Advantages
- Flexible hose design providing optimum characteristics for this application.
- Withstands rough handling.
- Without helix for discharge applications.
- Trelleborg's unique, patented solution offering a continuous length of up to 120 m, made possible by innovative junctions.
Design
Overview
Inner tube
wear resistant SBR/NBR, black, smooth.
Reinforcement
synthetic textile.
Cover
weather resistant SBR/NBR, black, fabric impression.
Temperature range
-40 to +80
Standard/Approval
Specially designed fittings are available, please contact us for further information in order to get optimum connections.
Technical Specifications
| ID (mm) | OD (mm) | Working Pressure (bar) | Bursting pressure (bar) | Max. vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Length (m) | Article number |
¤ Upon availability. * Tolerance on length: ± 1 % (ISO 1307 Standard)
