Applications

Advantages

Design

Overview
Inner tube
EPDM, smooth, black,
Reinforcement
synthetic textile with embedded steel helix,
Cover
weather resistant EPDM, corrugated, black, fabric impression
Temperature range
-30 to +100, Peaks at +110°C
Electrical properties
conductive tube and cover (helix must be connected with couplings).
Hose is ATEX approved for dimensions above 40mm.
Additional information
Low stretch under 10bar working pressure.
Lengths are stocked in 20 or 12m, ask us for longer lengths.

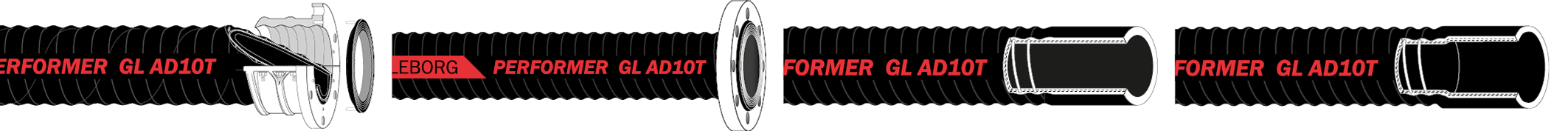

Couplings Fittings
Hoses are fitted with BLOC-END® and must be used to the following maximum working pressure:

ID≤150mm:
10bar.

ID>150mm:
- 10bar for static application (no hose movement, no water hammer, no traction) and/or temperature max <40°C,
- 5bar for dynamic application and/or temperature >40°C.
Technical Specifications
ID (mm) Wall thickness (mm) OD (mm) Working Pressure (bar) Bursting pressure (bar) Max. vacuum (bar) Bending radius (mm) Weight (kg/m) Length (m) Article number Stock or min. order (m)
¤ Upon availability.
* Tolerance on length: ± 1 % (ISO 1307 Standard)
Pressure Table
Notes
Solutions for cement Industry
Check out our high performance solutions for Cement industry. High wear resistance rubber sheetings, a large range of rubber hoses for pneumatic conveying : Perfomer,Trellvac, Supervrac, the Scirocco II hose : the flexible airslide.
Downloads

Product Sheet

Storage Guideline

Bloc-End coupling

Bloc-End fittings instructions

Handling guideline

Performer Brochure

ATEX Certificate
