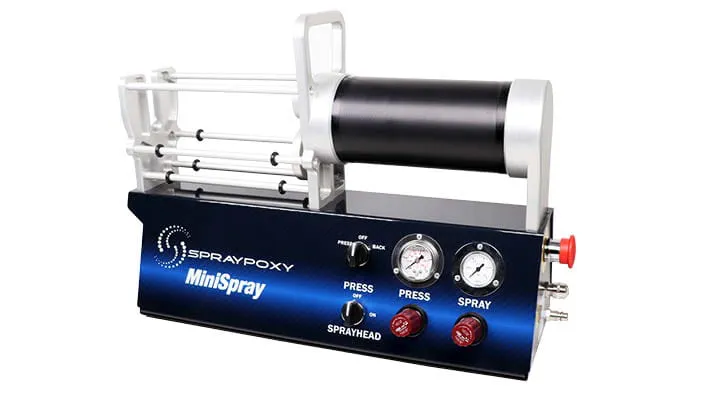

The smallest spray coating machine in the world! Due to the device’s lightweight and handy size, it’s a pleasure to carry it around and do quick spray coating jobs. Spray coats pipes from DN 32 up to DN 125.

Ultra-lightweight and compact

• For Internal Spray coating of Sewer Pipes, rainwater gutters and manholes
• Heated hoses and cartridges guarantee a smooth epoxy flow even when the temperature is low
• Compatible with SprayCoat Epoxy and Polyurea cartridges
• Mixes at Spray head causing 60% less waste than traditional coating systems

Technical features

Range: DN32 – DN125 (NPS 1.25” – 5”)

Capacity: up to 20 m (66 ft)

Weight: 9 kg (20 lbs)

The second smallest spray coating machine in the world, after the original MiniSpray! MiniSpray+ is equipped with a dual cartridge system, which enables spray coating of larger and longer pipes.

• Lightweight and compact
• Double-barrel
• For Internal Spray coating of Sewer Pipes, rainwater gutters and manholes
• Heated hoses and cartridges guarantee a smooth epoxy flow even when the temperature is low
• Compatible with SprayCoat Epoxy and Polyurea cartridges
• Mixes at Spray head causing 60% less waste than traditional coating systems

Technical features

Range: DN32 – DN150 (NPS 1.25” – 6”)

Capacity: up to 20 m (66 ft)

Weight: 10 kg (22 lbs)

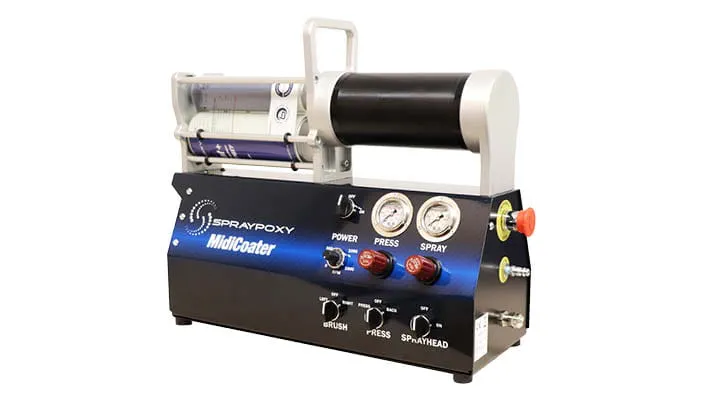

Everything you need for pipe rehabilitation! Pipe cleaning machine, spray coating, and brush coating machine, all this is possible just with this one and the same device. Spraypoxy MidiCoater is the most cost-efficient pipe coating unit in the world! With MidiCoater you can coat pipes without an unnecessary mess.

• Lightweight and compact
• ALL IN ONE - For cleaning, Spray- and Brush coating of Sewer Pipes, Rainwater gutters and Manholes
• Outlets for Heated hoses and Cartridge heater
• Compatible with SprayCoat Epoxy and Polyurea cartridges
• Mixes at spray- or brush head causing 60% less waste than traditional coating systems

Technical features

Range: DN 32 – DN 125 (NPS 1.25” – 5”)

Capacity: up to 20 m (66 ft)

Weight: 20 kg (44 lbs)

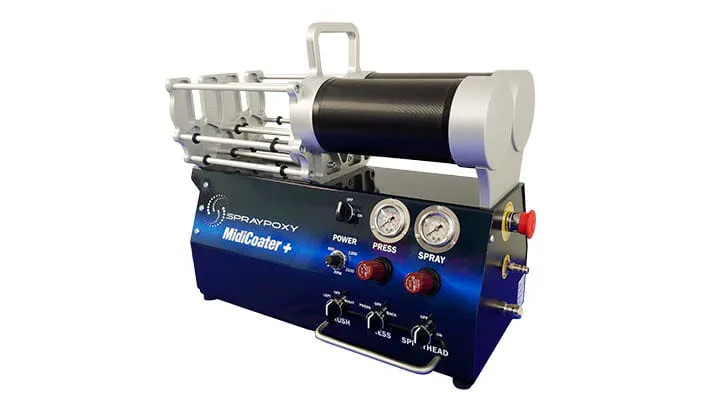

Pipe cleaning machine, spray coating, and brush coating machine, all in this one device. The Spraypoxy MidiCoater + has a dual cartridge system, which makes working even faster and you save time and money.

• Lightweight and compact
• Double-barrel
• ALL IN ONE - for cleaning, spray- and brush coating of sewer pipes, rainwater gutters and manholes
• Outlets for heated hoses and cartridge heater
• Compatible with SprayCoat epoxy and polyurea cartridges
• Mixes at spray- or brush head causing 60% less waste than traditional coating systems

Technical features

Range: DN32 – DN150 (NPS 1.25” – 6”)

Capacity: up to 20 m (66 ft)

Weight: 22 kg (48 lbs)

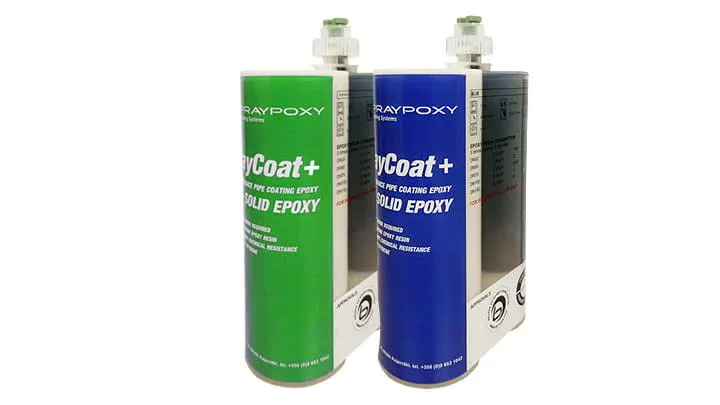

Compact package of fast-curing brush coating epoxy. Fits all Spraypoxy MidiCoaters and MiniSprays.

• Good for brush coating
• Recoat time 1 hour
• Layer thickness 1.0 mm
• Very good chemical and high temperature resistance

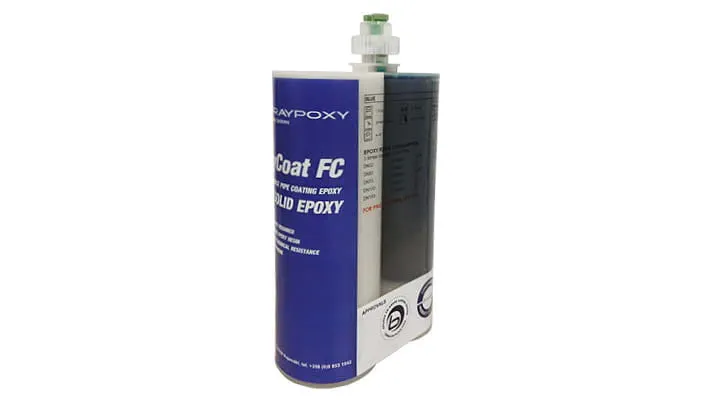

Compact package of fast-curing spray coating epoxy. Fits all Spraypoxy MidiCoaters and MiniSprays.

• Specially designed for spray coating
• Recoat time 30 – 60 minutes
• Layer thickness 1.0 mm
• Very good chemical and high temperature resistance

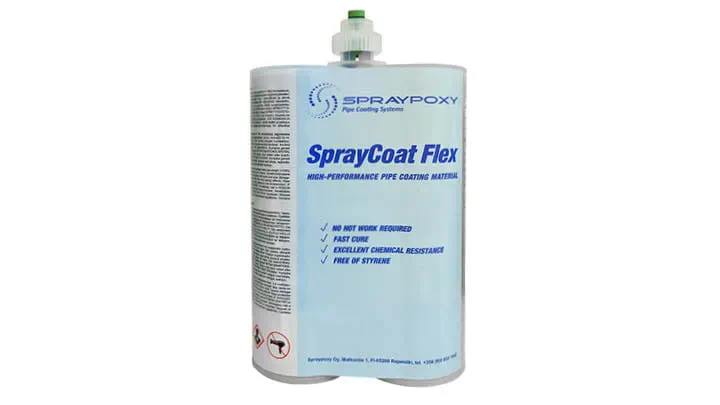

Compact package of fast-curing spray coating material. Fits all spraypoxy Midicoaters and Minisprays.

• Flexible material
• Recoat time 5 minutes
• Pot life 90 seconds
• Layer thickness 1.0 mm
