LEXSYS series

LEXSYS Exhaust Line Components

  • Fixed suspension points
  • Stainless steel expansion joints
  • Sliding points
  • Bulk/deck and elastic conduits
  • Rain caps
Contact Us
On this page:

Product Description

The exhaust line system of a ship must be capable of handling stress caused by thermal expansions and contractions. LEXSYS been specifically designed to isolate engine-caused vibration and minimise harmful effects on the vessel, its equipment, and crew. Th components ensure that thermal expansions and contractions within the exhaust line are completely compensated, also protecting the the hull of the ship. The components of the LEXSYS system are listed below.

LEXSYS Components

VP-631

Fixed Points

Because these elements are fixed to the ship’s foundation or structure, they determine the direction of the thermal expansion. The first fixed point is always located as close as possible to the engine but always after the first compensator. This protects the engine from the system expansion.

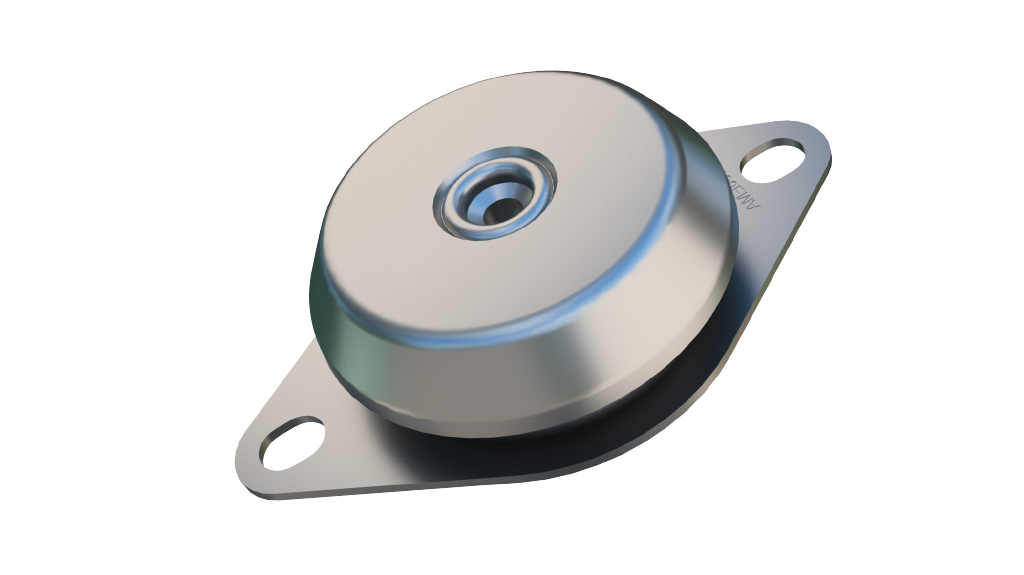

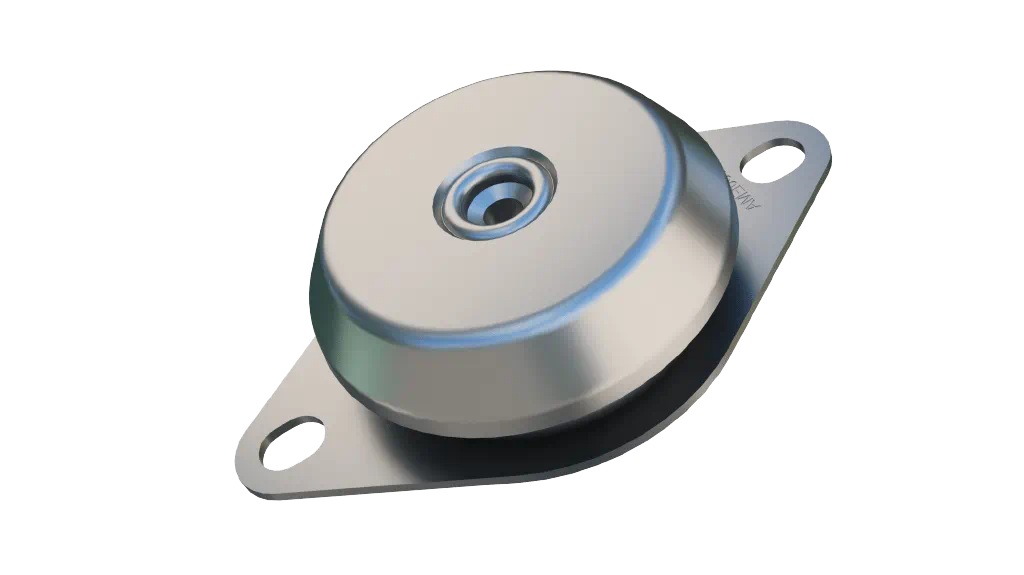

RAEM-Mount

RAEM Mounting

The RAEM is a universal mounting for applications demanding maximum vibration isolation. It is a further development of the RA mount, where EM stands for ’extra movement’ and is suitable for both light and heavy machines.

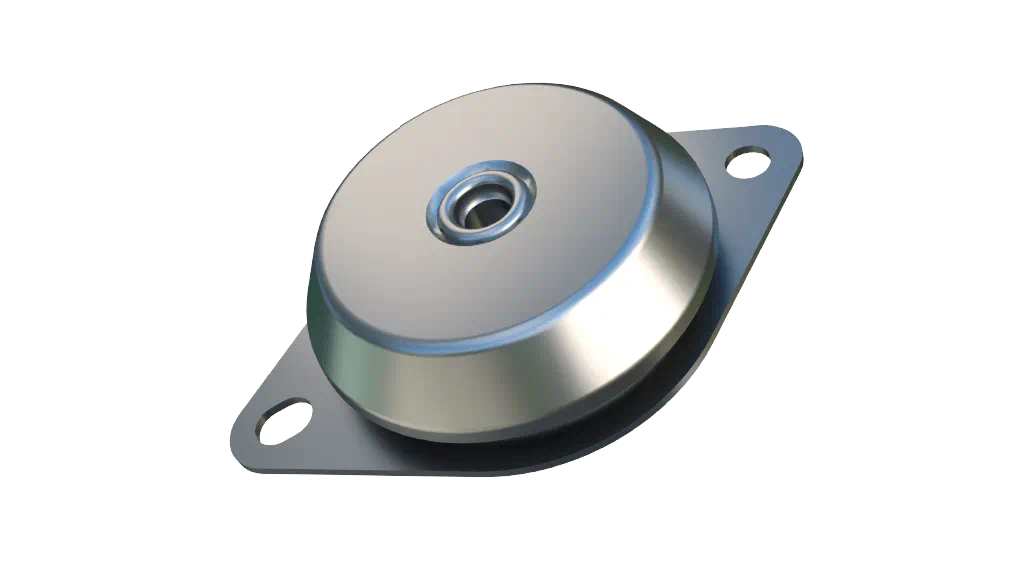

RA-Mount

RA Mounting

RA mount uses the rubber profile in shear and compression to obtain good vertical flexibility with the advantage of horizontal stability. For normal speeds of approx. 1500 RPM, the RA provides a degree of isolation of 75-85%. For better isolation, the alternative RAEM or M-Series can be chosen.

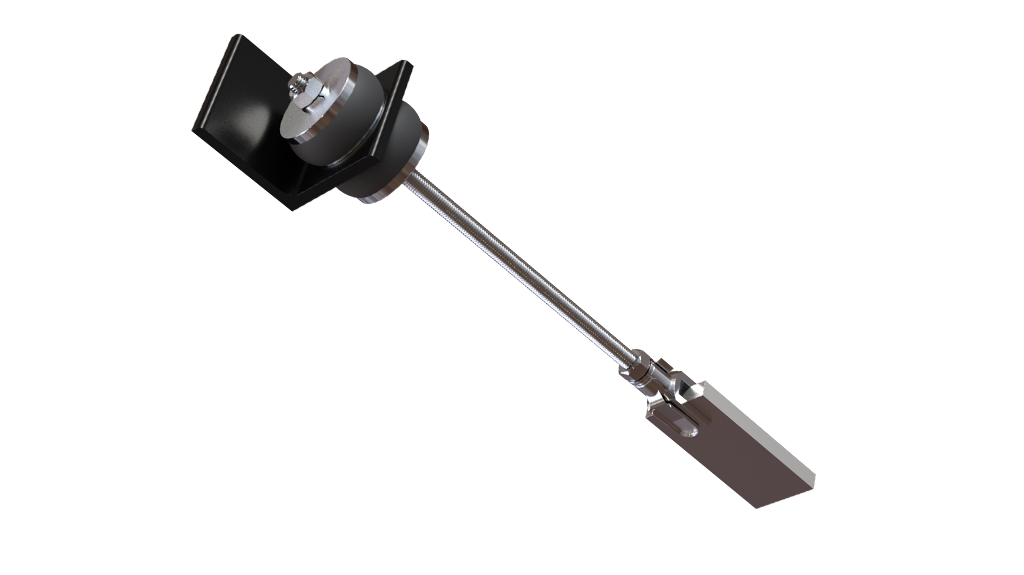

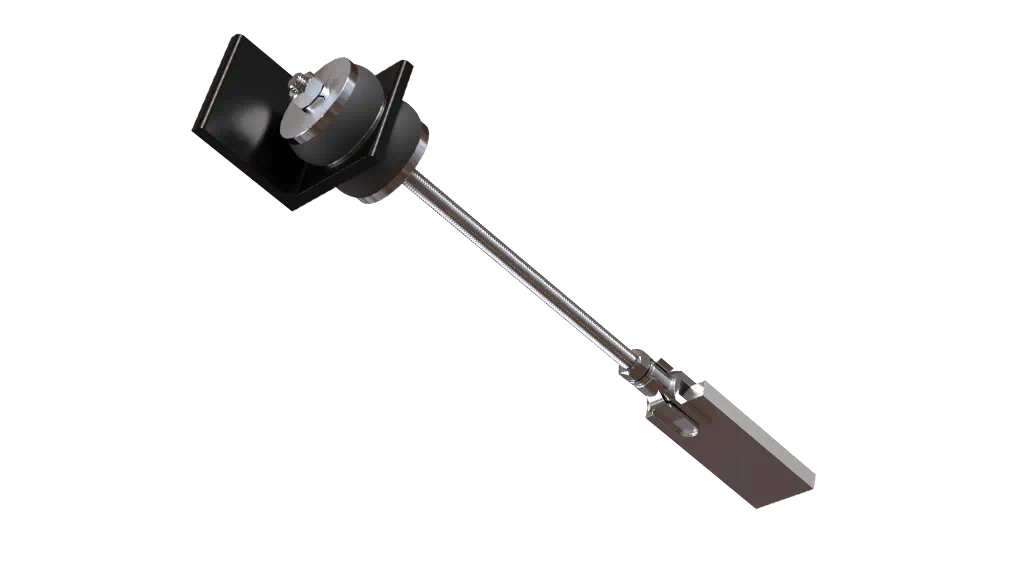

TI-250

Sliding Points

Sliding points allow longitudinal movement within the system caused by the thermal expansion and contraction in the exhaust line. The rubber elements in the sliding points ensure that the vibrations are not transmitted to the rest of the ship.

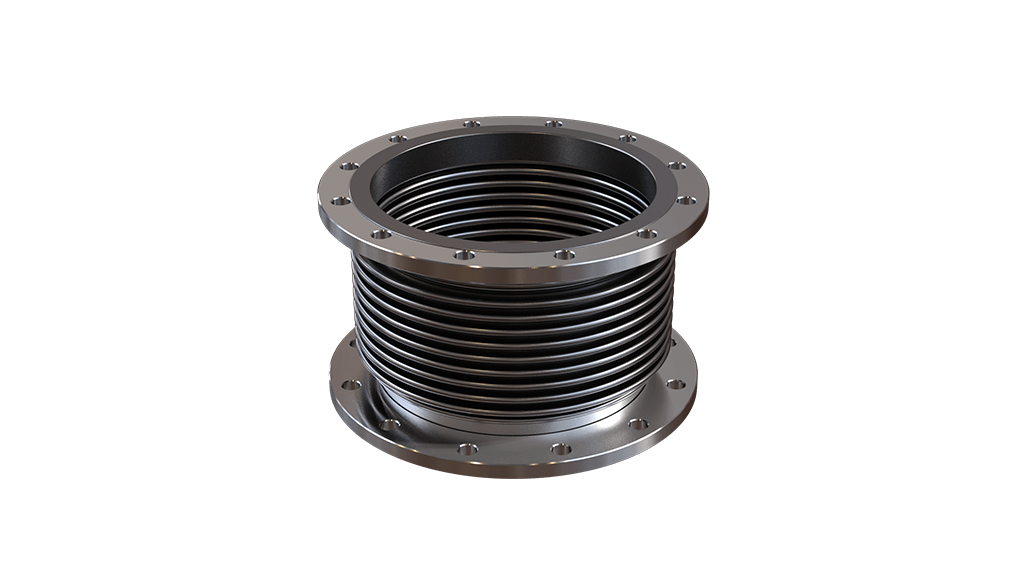

Balance-VIII-DN-250

Stainless Steel Expansion Joints (Balance Series)

Pipeline systems are exposed to temperature variations, setting in foundations, forces and deformations causing movement and/or stress in the system. Flexible parts can absorb movements, preventing structural damage.

Fixed-Elastic-Conduit-Unit

Bulkhead/Deck Conduit Units and Rain Caps

Deck conduit units protect the exhaust line at the intersection with the top deck and prevent the transfer of vibrations to the ship’s structure. Rain caps prevent water from entering the vessel through the deck penetration of the exhaust line.

Trelleborg Exhaust Line System_Brochure_mockup

Marine Exhaust Line System brochure

Read more about the Trelleborg  Exhaust Line System: the next-generation solution engineered to meet the rigorous demands of modern marine propulsion and onboard machinery.
