Pipecure Flex | Engineered-coated-fabrics
ECF-PipeCure-720

If you want to watch this content, you must accept marketing cookies.

Cookie settings

Key features and benefits

  • FLEXIBLE - Suitable for use on horizontal and vertical pipes and accommodates bends up to 90 degrees with minimal wrinkling.  Capable of transitioning between widths and has a low coefficient of friction.
  • DURABLE - Ultra strong.  High abrasion, chemical and hydrostatic resistance.
  • HIGH TEMPERATURE RESISTANCE - Ultimate temperature resistance up to 230C/450F during exothermic reactions.  Wide service temperature range.
  • PROCESS FRIENDLY - Sew, seam tapeable, heat sealable, and weldable.
  • INSTALLATION FRIENDLY - Compatible with inversion and pull in place installation methods.
  • HIGH RESIN COMPATABILITY - Epoxy, Polyester, Polyester styrene, and Vinyl ester.
  • CURABLE - Compatible with ambient, hot water, or steam curing.
  • AIR HOLDING - Superb resistance to air leaks.
  • TRANSPARENT PU COATING - Resin absorption is visible throughout the entire wet-out process.
  • ENVIRONMENTALLY RESPONSIBLE - Manufactured with a solvent-free process using less energy and space.

Compatible with:

  •  Clay Pipes
  • Lead Pipes
  • PVC Pipes
  • Concrete Pipes

Applications:

  • Manholes
  • Vertical Pipes
  • Lateral Pipes
  • Pipe Connections
  • Transition Liners

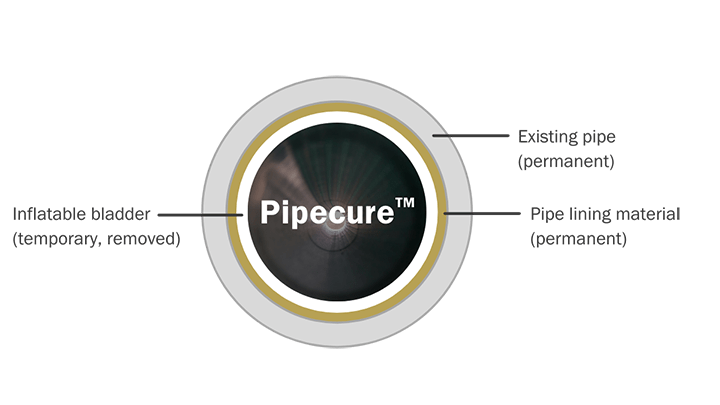

Pipecure Flex™

For CIPP Trenchless Pipe Rehabilitation
Trelleborg Pipecure fabric liner 720

Download Pipecure Flex™ by Trelleborg

Highly engineered polyurethane coated knit liner fabrics.
