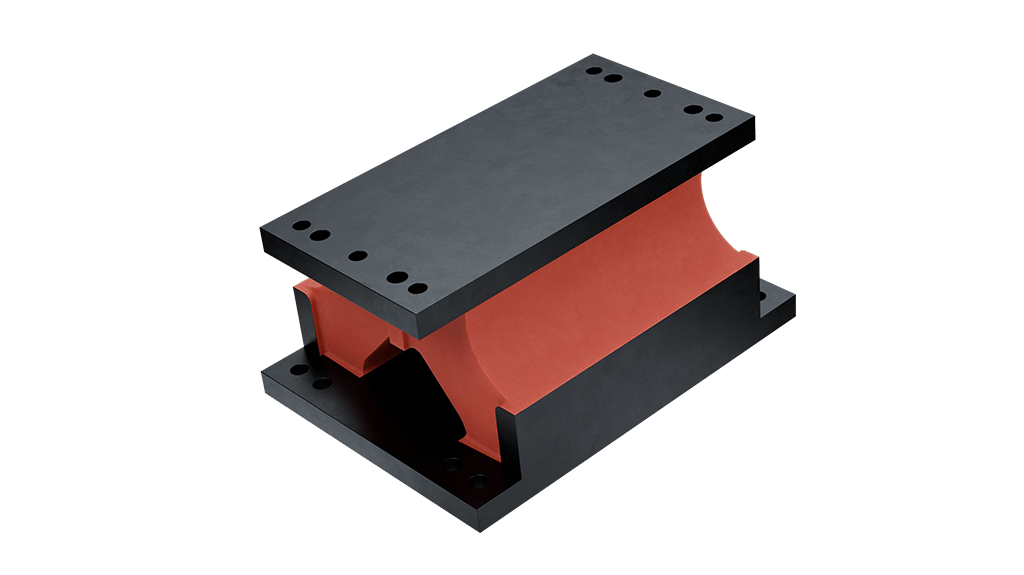

Super D Marine Shock Mount

Super D

  • 23 mm Nominal Static Deflection
  • Up to 50 mm Shock Excursions
  • Compatible with Buffers

Product Description

Unmatched durability meets supreme shock absorption

Product Data

Flanged Super D

TYPEABCWeight (kg)Rubber hardnessStatic vertical stiffness (N/mm)Dynamic vertical stiffness (N/mm)Maximum static load (kN)
17-1736 340 280 220 65 45 620 710 14.2
55 920 1160 21
65 1375 1965 31.5
17-1737 410 350 290 81 45 835 960 19
55 1275 1180 29.5
65 1960 2650 44
17-1738 480 420 420 97 45 1325 1520 30.5
55 1960 2450 45
65 2940 3975 67.8
VerticalLateralLongitudinal
1 0.95 0.17

Non-flanged Super D

Product NumberNon-flangedABCWeight (kg)Rubber hardnessStatic vertical stiffness (N/mm)Dynamic vertical stiffness (N/mm)Maximum static load (kN)
17-1661 - - - 220 48.5 45 620 710 14.2
55 920 1160 21
65 1375 1965 31.5
17-1662 - - - 290 64 45 835 960 19
55 1275 1180 29.5
65 1960 2650 44
17-1663 - - - 360 80 45 1325 1520 30.5
55 1960 2450 45
65 2940 3975 67.8
VerticalLateralLongitudinal
1 1 0.22
