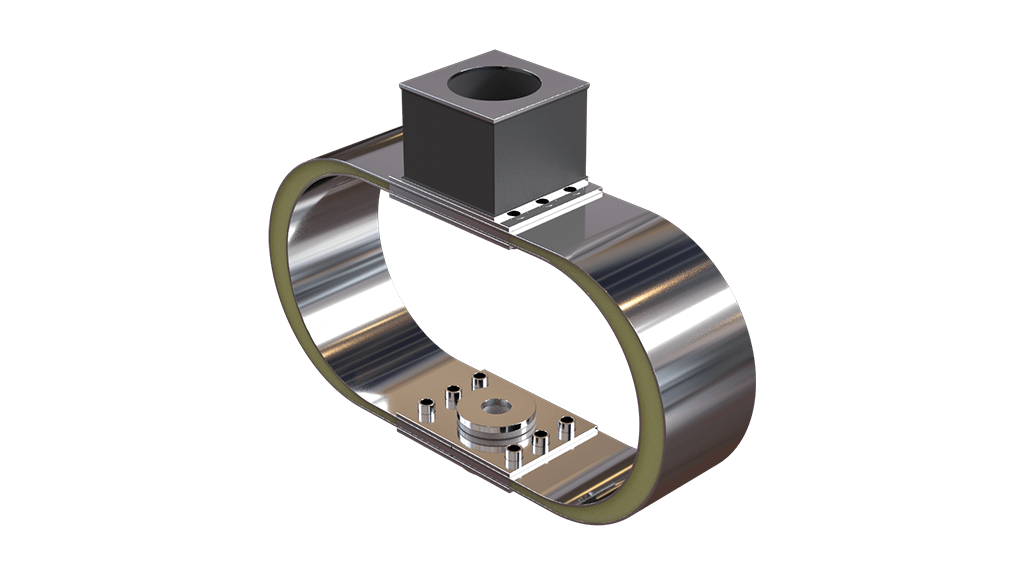

Leaf Spring Mount (Y-Mount)
The Leaf Spring Mount (LSM) was primarily designed to protect shipborne equipment from underwater explosions but has during the years found a large number of applications in both military and civilian use. Although the LSM nowadays is often replaced by newly developed shock mounts, there are some applications where it is still the most effective solution.
Construction
The basic design uses two or more high-tensile stainless steel U-formed leaves, that together form an elliptical shape when joined together in the center with plates. The spaces between the U-formed leaves are filled with a special epoxy resin compound with high damping properties. The characteristics of the mount under shock load are determined by the chosen metal construction, while the efficiency of the damping is obtained by the epoxy resin. The Y-Mount distinguishes itself from the X-Mount by an additional rubber element at the top which improves sound isolation significantly.
General
Optional rubber mounting washers/rings instead of nylon inserts are available to improve sound isolation. All LSM-mounts are registered under a NATO Stock Number. Trelleborg AVS-NL CAGE code is H0040. Typical applications of the LSM include but are not limited to engines, switch cabinets, electronic equipment and floating floors on board of various types of naval ships worldwide.
Characteristics
- Stainless steel U-formed leaves
- Easily fitted
- Stainless steel leaf and washer
- Epoxy resin compound
- Elastomer and nylon bushes
- Multi-directional shock mount with relatively high damping grade
- Transmitted acceleration limited to 5 G (longitudinal) and to 15 G (vertical and transversal)
- Displacement up to 60mm (vertical) and 40mm (radial)
- Nominal load range: 10 to 450 kg
- Captive design
- Good sound isolation (with optional rubber inserts)
- Temperature range: -20 °C to +40 °C
- Registered under NATO stock numbers (NSN)
NOMINAL LOAD (KG) | STATIC LOAD RANGE (KG) | STATIC STIFFNESS (N/mm) | STATIC DEFLECTION² (mm) | |||
X | Y | Z | MIN | MAX | ||
10 | 9-18 | 7 | 17 | 13 | 6,2 | 8,6 |
20 | 18-35 | 14 | 35 | 26 | 6,2 | 8,6 |
45 | 35-55 | 24 | 58 | 44 | 8,6 | 11,6 |
70 | 55-90 | 39 | 91 | 70 | 8,2 | 11,2 |
110 | 90-135 | 61 | 149 | 120 | 7,7 | 10,5 |
180 | 135-250 | 175 | 665 | 350 | 4,3 | 5,9 |
320 | 250-380 | 219 | 788 | 500 | 5,4 | 7,4 |
450 | 380-550 | 385 | 1400 | 875 | 4,3 | 5,9 |
NOMINAL LOAD (KG) | ARTICLE NO. | NATO STOCK NUMBER (NSN) | DIMENSIONS¹ (mm) | ||||||||
L | H | H2 | W | W2 | D | D2 | D3 | D4 | |||
10 | 116001010 | 5340-99-778-9769 | 203 | 134 | 41 | 48 | 51 | 9 (M8) | 32 | 36 | M6 |
20 | 116001020 | 5340-99-778-9770 | 203 | 134 | 42 | 48 | 51 | 9 (M8) | 32 | 36 | M6 |
45 | 116001045 | 5340-99-778-9771 | 216 | 166 | 56 | 48 | 51 | 13 (M12) | 32 | 36 | M10 |
70 | 116001070 | 5340-99-778-9772 | 216 | 166 | 57 | 48 | 51 | 13 (M12) | 32 | 36 | M10 |
110 | 116001110 | 5340-99-778-9773 | 216 | 166 | 58 | 48 | 51 | 13 (M12) | 32 | 36 | M10 |
180 | 116001180 | 5340-99-778-9774 | 297 | 229 | 77 | 96 | 102 | 21 (M20) | 64 | 72 | M16 |
320 | 1160011320 | 5340-99-778-9775 | 297 | 229 | 79 | 96 | 102 | 21 (M20) | 64 | 72 | M16 |
450 | 116001450 | 5340-99-778-9776 | 297 | 229 | 81 | 96 | 102 | 21 (M20) | 64 | 72 | M16 |
TYPE | PERMISSIVE DEFORMATION (mm) | MAX. TRANSMITTED ACCELERATION AT STATIC LOAD (M/S2) | ||||
X | Y | Z | X | Y | Z | |
All types | ± 45 | ± 45 | ± 60 | 50 | 150 | 150 |
FOR Y-TYPE | ARTICLE NO. | NATO STOCK NUMBERS | |
Y-MOUNT | FIX KIT 1 | ||
10 | 116005016 | 5340-99-778-9769 | 5340-99-861-9603 |
20 | 116005026 | 5340-99-778-9770 | 5340-99-861-9603 |
45 | 116005046 | 5340-99-778-9771 | 5340-99-702-0730 |
70 | 116005076 | 5340-99-778-9772 | 5340-99-702-0730 |
110 | 116005116 | 5340-99-778-9773 | 5340-99-702-0730 |
180 | 116005186 | 5340-99-778-9774 | 5340-99-968-1694 |
320 | 116005326 | 5340-99-778-9775 | 5340-99-968-1694 |
450 | 116005456 | 5340-99-778-9776 | 5340-99-968-1694 |
FOR Y-TYPE | ARTICLE NO. | NATO STOCK NUMBERS | |
Y-MOUNT | FIX KIT 2 | ||
10 | 16005017 | 5340-99-778-9769 | 5340-99-131-1422 |
20 | 116005027 | 5340-99-778-9770 | 5340-99-131-1422 |
45 | 116005047 | 5340-99-778-9771 | 5340-99-551-2649 |
70 | 116005077 | 5340-99-778-9772 | 5340-99-551-2649 |
110 | 116005117 | 5340-99-778-9773 | 5340-99-551-2649 |
180 | 116005187 | 5340-99-778-9774 | 5340-99-968-1695 |
320 | 116005327 | 5340-99-778-9775 | 5340-99-968-1695 |
450 | 116005457 | 5340-99-778-9776 | 5340-99-968-1695 |
