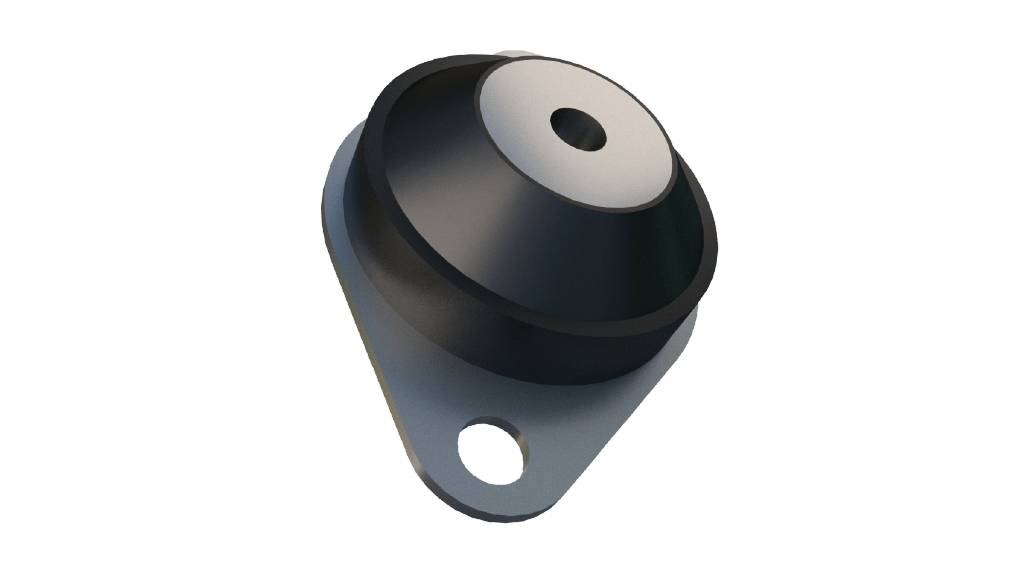

Equi-frequency-mount-small

Equi-Frequency small

  • Low profile mounting
  • Fail safe design
  • Simple to install
Contact Us

Product Description

General-purpose low-profile mounting for use where space is restricted. Suitable for stationary applications. May also be used to protect delicate or sensitive equipment from shock or disturbances. Each design has substantially the same stiffness in vertical and horizontal directions. Load range 11 kg to 54 kg. Can be used as a small anti-shock mounting when static loadings are derated.

Product Data

Type Part number M-Max (kg) Weight (kg)
17-1566-45 10-00529-01  11  0,024
17-1566-60 10-0530-01 22 0,024
17-0389-45 10-00406-01  27  0,10
17-0389-60  10-00407-01  54  0,10

Technical Drawing

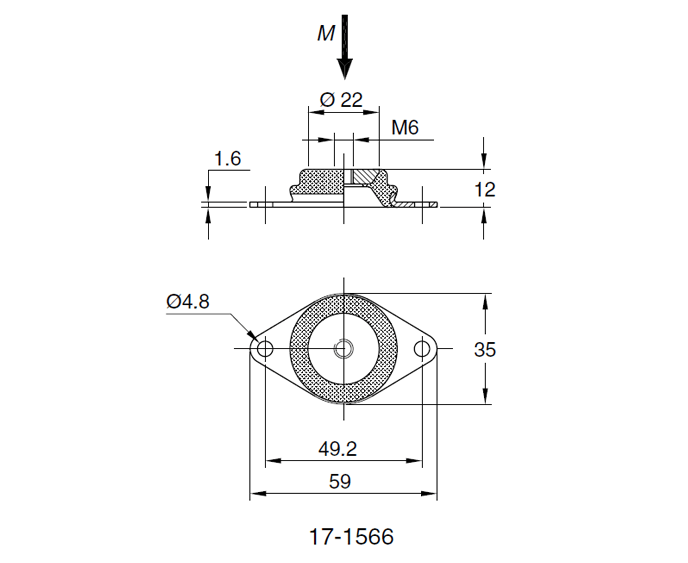

eq-17-1566_drawing-2

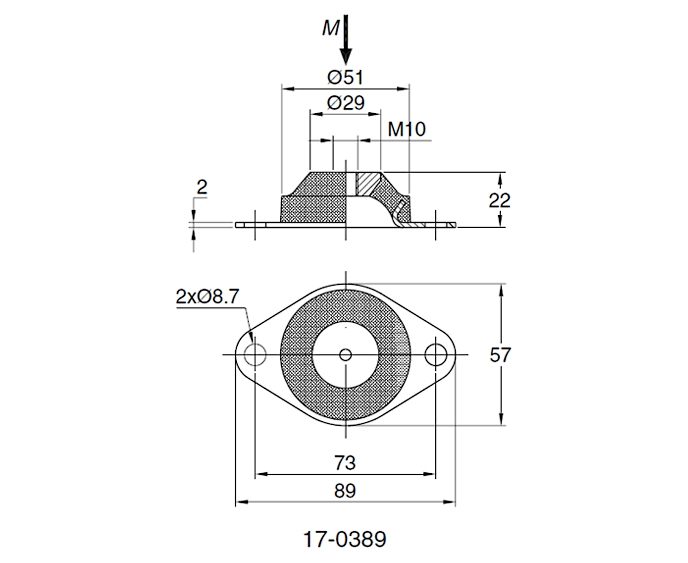

eq-17-0389_drawing-2

Catalogues

TAVS_Product_Datasheet

Download the datasheet
