ERV Yellowsteel DN25-600

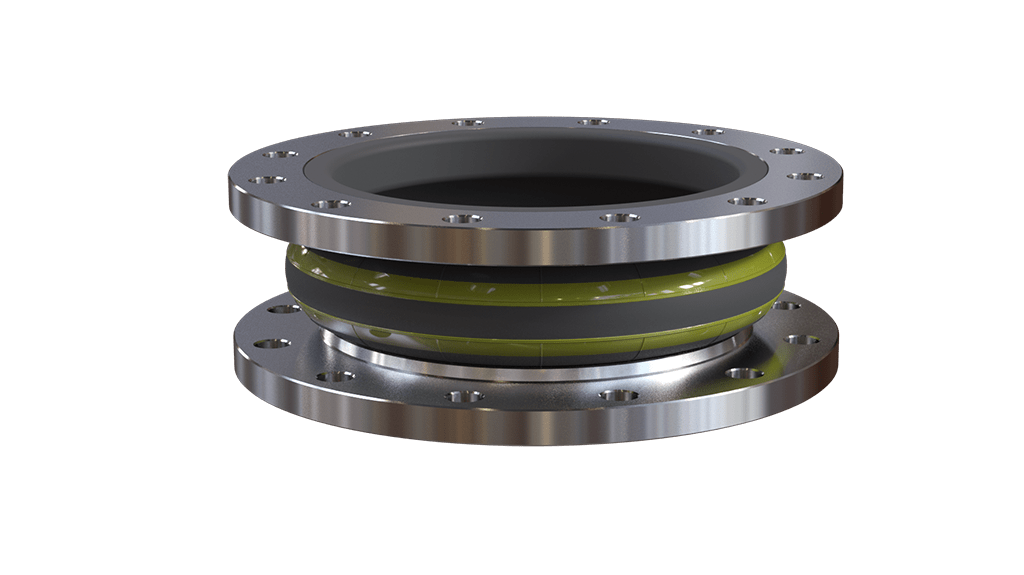

The ERV Yellowsteel rubber expansion joint is used for flexible connections in high-pressure pipeline systems for petrochemical applications. It is

suitable for use with fuels, DIN fuels with up to 50% aromatics, oil-contaminated cooling water, lubricant, hydraulic oil, and saltwater. The flanges of the ERV Yellowsteel are rotatable and standard available in DIN PN10 and PN16. The operating temperature depends on the medium and ranges from -20 °C to +90 °C. The ERV Yellowsteel is flame-resistant for 30 minutes at 800 °C, allowing machine chamber applications without using the optional fire protection cover. The maximum working pressure is 16 bar, 10 bar for the largest diameters.


CONSTRUCTION

  • Durable nitrile rubber (NBR) inner wall, seamless
  • Steel wire reinforced
  • Chloroprene (CR) outer wall
  • Electrically conductive
  • Rotating flanges, galvanized steel


APPROVALS

Approved by DNV-GL, Lloyd’s Register, Bureau Veritas, RINA, ABS, Nippon

Kaiji Kyokai, CCS and Marine Equipment Directive.


OPTIONS

  • Most sizes available in different neutral lengths
  • Flanges according to DIN PN6, PN25, PN40, ASA 150 lbs or BS10
  • Flanges in stainless steel or bronze
  • Tie rods
  • PTFE lining
  • Vacuum support rings
  • Fire protection cover
Product data
PART No. INSIDE DIAMETER A (MM) LENGTH B (MM) WORKING PRESSURE (BAR) FLANGE DIMENSIONS CLASS OUTSIDE DIAMETER C (MM) PITCH D (MM) E x F (NUMBER x MM)
300 042 025 25 130 16 DIN PN10/16 115 85 4x14
300 042 032 32 130 16 DIN PN10/16 140 100 4x18
300 042 040 40 130 16 DIN PN10/16 150 110 4x18
300 042 050 50 130 16 DIN PN10/16 165 125 4x18
300 042 065 65 130 16 DIN PN10/16 185 145 4x18
300 042 080 80 130 16 DIN PN10/16 200 160 8x18
300 042 100 100 130 16 DIN PN10/16 220 180 8x18
300 042 125 125 130 16 DIN PN10/16 250 210 8x18
300 042 150 150 130 16 DIN PN10/16 285 240 8x22
300 042 201 200 130 10 DIN PN10 340 295 8x22
300 042 200 200 130 16 DIN PN16 340 295 12x22
300 042 251 250 130 10 DIN PN10 395 350 12x22
300 042 250 250 130 16 DIN PN16 405 355 12x26
300 042 301 300 130 10 DIN PN10 445 400 12x22
300 042 300 300 130 16 DIN PN16 460 410 12x26
300 042 351 350 200 10 DIN PN10 505 460 16x22
300 042 401 400 200 10 DIN PN10 565 515 16x26
300 042 501 500 200 10 DIN PN10 670 620 20x26
300 042 601 600 200 10 DIN PN10 780 725 20x30

Movements
NOMINAL DIAMETER (MM) COMPRESSION (MM) ELONGATION (MM) LATERAL (MM) ANGULAR (DEGREES)
25-80 30 15 ± 15 ± 20
100-150 30 15 ± 15 ± 15
200-300 15 20 ± 10 ± 5
300-350 30 30 ± 25 ± 10
400-600 40 30 ± 25 ± 5
