Balance X: DN80-450

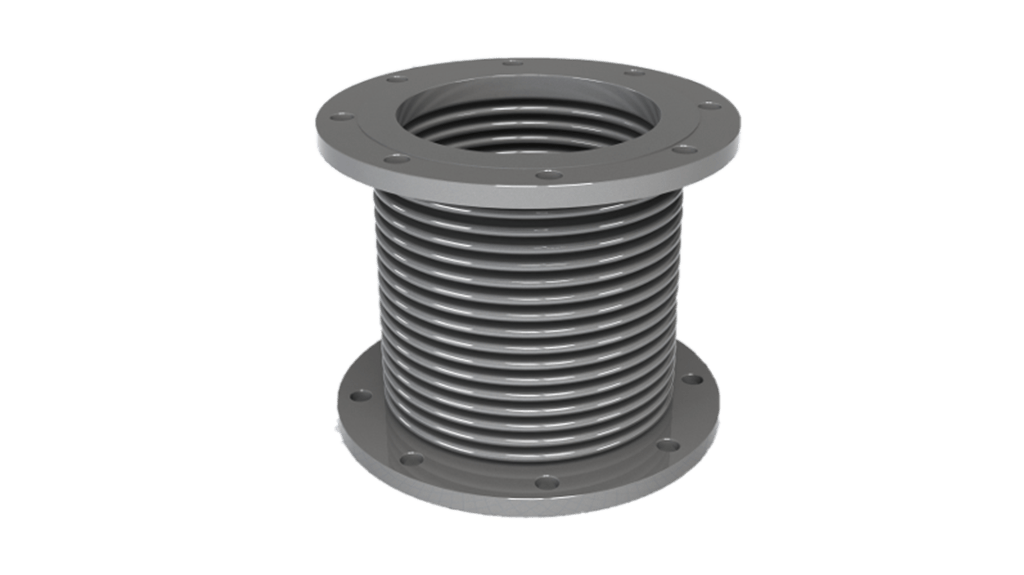

The Balance X is a stainless steel expansion joint with rotating flanges according to DIN PN 6. It is used to accommodate axial movements and lateral misalignments in piping systems. Due to its double-ply bellows, this compensator is more flexible in comparison to similar single-ply compensators. The maximum operating temperature of the Balance X is +550 °C, the maximum working pressure 2,5 bar (120 °C).



APPROVALS

Type approval available on request.



CHARACTERISTICS

  • Stainless steel expansion joint AISI 321
  • With rotating flanges acc. DIN PN 6
  • Double-ply bellows material
  • Standard length
  • Max. temperature: 550 °C
  • Max. pressure: 2,5 bar (120 °C)
  • Stock item
Product data
PART No. DN L1 Bellows (AISI 321) Flange (carbon steel) Movements 2 (mm) Springrate (n/mm)
B (mm) Thickness (mm) No. of Plies D Outside (mm) Bolt Circle Holes x d Axial +/- Lateral +/- Axial +/- Lateral +/-
330 420 080 80 255 100.2 0.3 2 190 150 4 x 18 50 19 24 41
330 420 100 100 255 132.2 0.3 2 210 170 4 x 18 50 15 27 44
330 420 125 125 255 159.2 0.3 2 240 200 8 x 18 48 15 48 80
330 420 150 150 255 183.2 0.3 2 265 225 8 x 18 50 13 53 95
330 420 175 175 255 211 0.3 2 295 255 8 x 18 49 12 63 148
330 420 200 200 255 242 0.4 2 320 280 8 x 18 60 14 50 154
330 420 250 250 255 303 0.4 2 375 335 12 x 18 60 11 58 278
330 420 300 300 305 359 0.4 2 440 395 12 x 22 65 10 59 418
330 420 350 350 305 393 0.4 2 490 445 12 x 22 63 8 64 548
330 420 400 400 305 447 0.4 2 540 495 12 x 22 76 11 44 308
330 420 450 450 310 501 0.4 2 595 550 12 x 22 76 11 50 350

Note:
1. Other stainless steel grades and diameters available on request
2. Axial and lateral movements are not to be used in combination
