Balance-3

Balance III DN100-350

  • Extended length
  • Carbon steel weld ends
  • Max. temperature: 550 °C
  • Max. pressure: 2,5 bar (50 °C)
Contact Us

Product Description

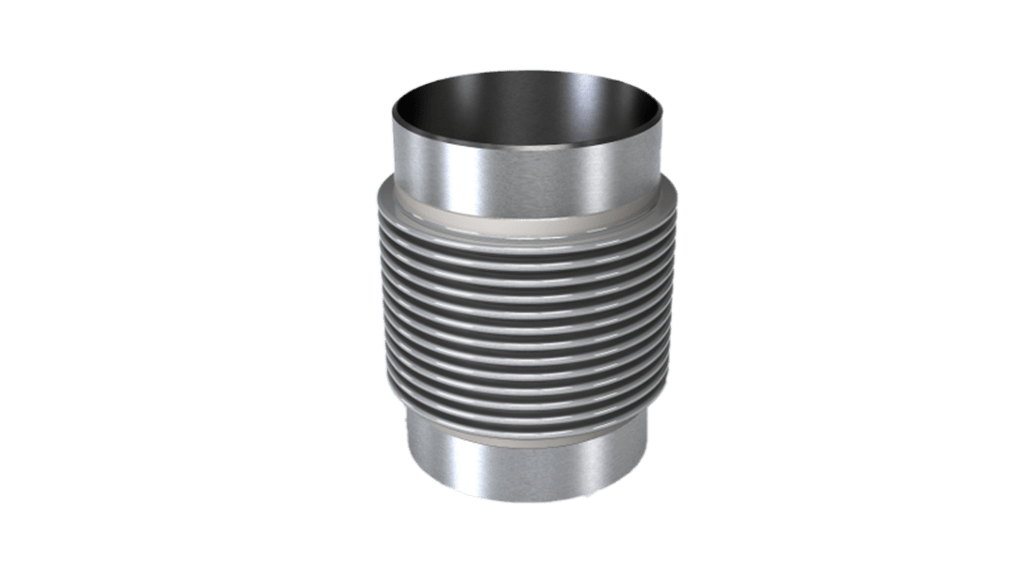

The Balance III is a stainless steel expansion joint with carbon steel weld ends. It is used to accommodate axial movements and relatively large lateral misalignments in piping systems. Due to its double-ply bellows, this compensator is more flexible in comparison to similar single-ply compensators. The maximum operating temperature of the Balance III is +550 °C, the maximum working pressure 2,5 bar (50 °C).

APPROVALS

Type approval available on request.

CHARACTERISTICS

  • Stainless steel expansion joint AISI 321
  • Long length
  • Double-ply bellows material
  • Extended length
  • Carbon steel weld ends
  • Max. temperature: 550 °C
  • Max. pressure: 2,5 bar (50 °C)
  • Stock item

Product Data

PART No.DNL1Bellows (AISI 321) (mm)Welding ends (carbon steel) (mm)Movements2 (mm)Springrate (n/mm)
B Thickness No. of Plies A C L2 Axial +/- Lateral +/- Axial +/- Lateral +/-
330 030 100 100 285 140.5 0.3 2 114.3 3.6 60 45 20 28 150
330 030 125 125 295 165.7 0.3 2 139.7 3.6 65 45 20 33 200
330 030 150 150 295 200.5 0.3 2 168.3 4,0 60 45 20 26 170
330 030 200 200 315 251.1 0.3 2 219.1 4.5 70 45 20 32 247
330 030 250 250 315 305.2 0.3 2 273,0 5,0 70 45 20 40 357
330 030 300 300 345 360.9 0.3 2 323.9 5.6 68 50 15 31 307
330 030 350 350 345 392.6 0.3 2 355.6 5.6 68 50 15 34 351
Note:
1. Other stainless steel grades and diameters available on request
2. Axial and lateral movements are not to be used in combination
