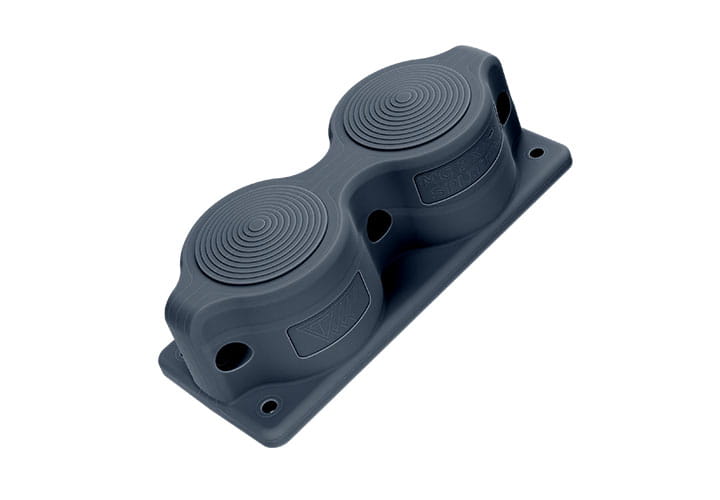

MC Splitting Entry Systems

  • An ideal solution for cables with pre-attached connectors
  • Quick assembly with a minimum of tools
Configure your own system

Product Description


Splitting Entry Systems for cables with attached connectors
Often with the cables come the connectors and very often the connectors can not be removed and re-attached. The delicate data cables, HDMI´s etc. are difficult or impossible to re-join at site. The Trelleborg Splitting Multigate is the solution that lets the cables be installed with the connectors and on top of that the cables can be changed as often as wanted. Choose Trelleborg Splitting Multigate for fast, safe and versatile installations.

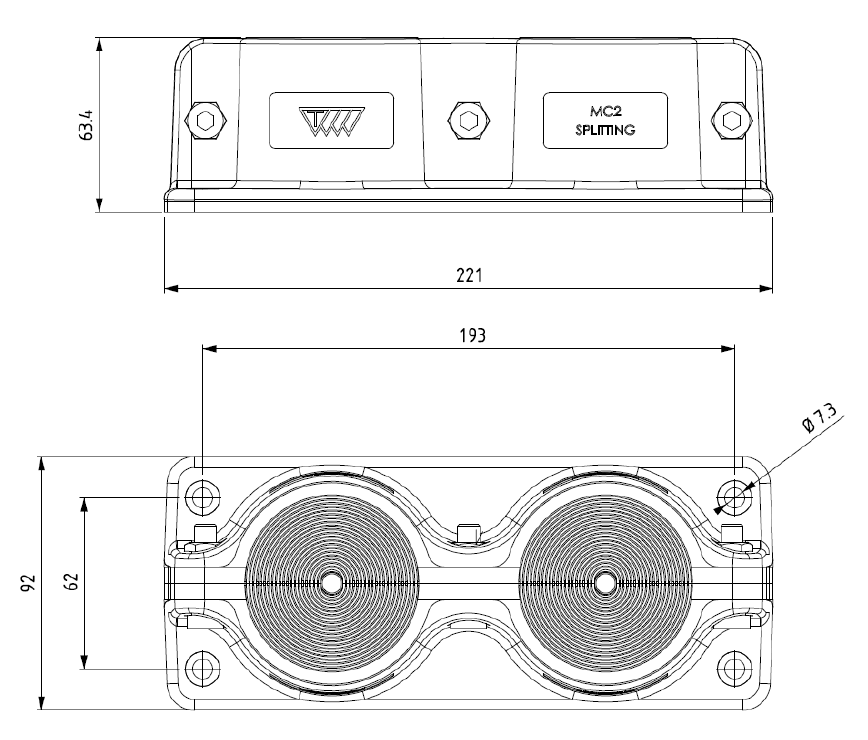

Technical Drawing

cutout-splitting-entry-system_MC2

Product Data

Description Aperture Part no Colour  RAL code  Feature  No of cables
 STM 24/10 B24
MC 2x8-67 C opening (FL21) 100074  Black  7035 UL94V-0  2

Certificates
