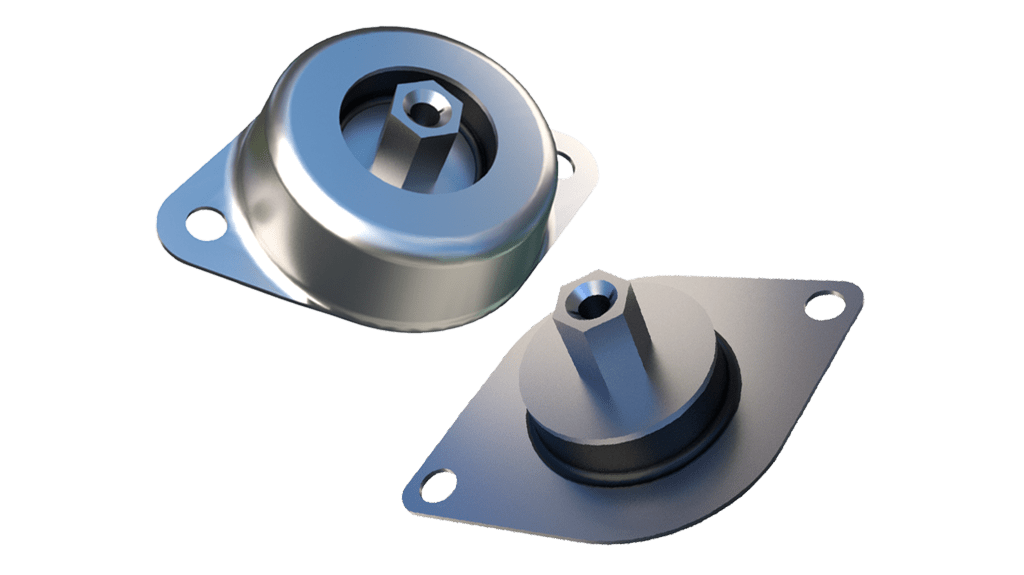

VT Mount

  • High deflection
  • Horizontal compression loads
  • Vertical shear deflection
Contact Us

Product Description


Type VT has been designed so that upon installation the rubber section is subjected to shear loads, thus providing high deflection even at low loads. Two different parts are available. The VT-upper provides for protection against tension preventing the isolated unit from falling down if overloading occurs.

VT-lower is designed to accept horizontal compression loads and allow shear deflection vertically.

Typical applications include:

  • Instrument cabinets
  • Light machinery
  • Fans
  • Refrigeration units

Product Data

REFERENCE DRAWING NO. PART NO. HARDNESS (IRHD) DIMENSIONS (mm) MAX LOAD (N)
E K A H Ød N t ØG RADIAL (M) AXIAL (F)
VT UPPER 17-4378 10-01369 40 75 114 96 33 9 15 1.5 M8 140 300
VT UPPER 17-4379 10-01370 60 75 114 96 33 9 15 1.5 M8 250 700
VT LOWER 17-4349 10-01373 40 75 114 96 33 9 15 1.5 M8 140 300
VT LOWER 17-4350 10-00015 60 75 114 96 33 9 15 1.5 M8 250 700

Technical Drawing

vt_mount_drawing-1

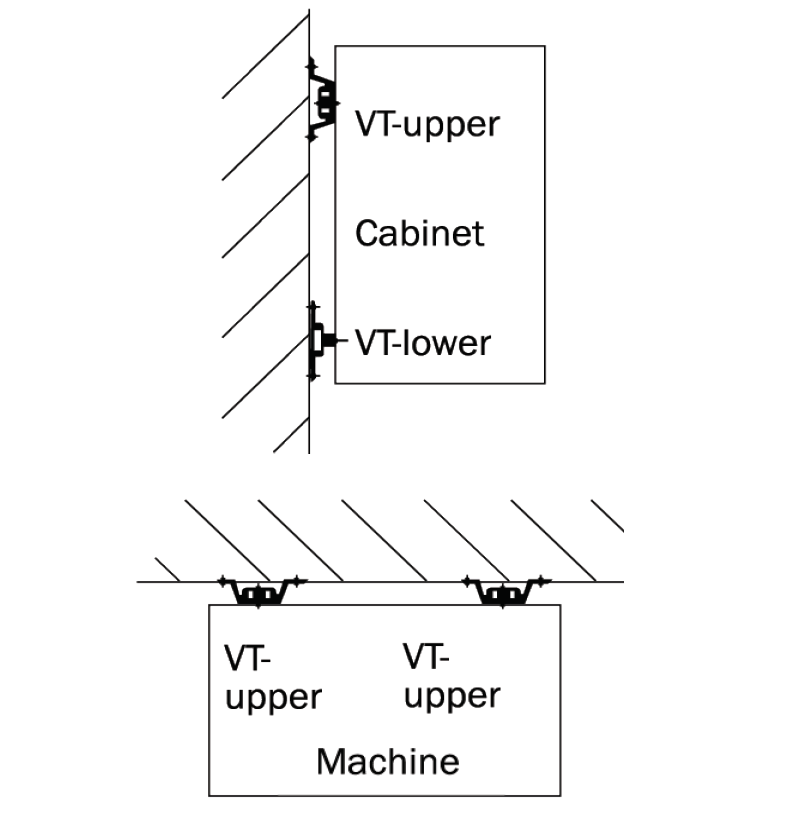

MOUNTING INSTRUCTIONS

vt_mount_drawing-2

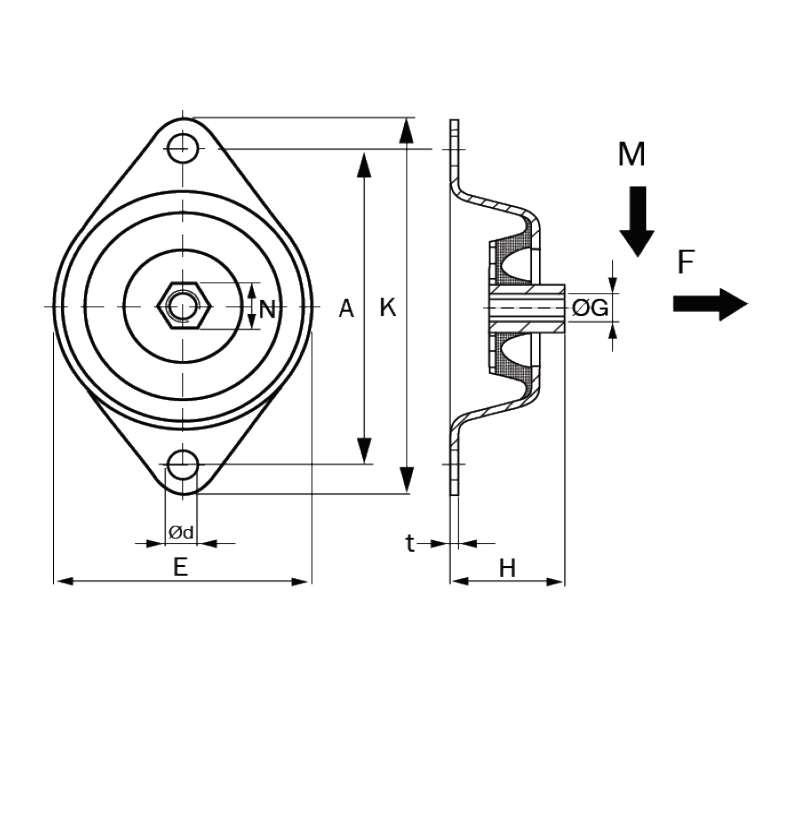

VT UPPER

vt_mount_drawing-3

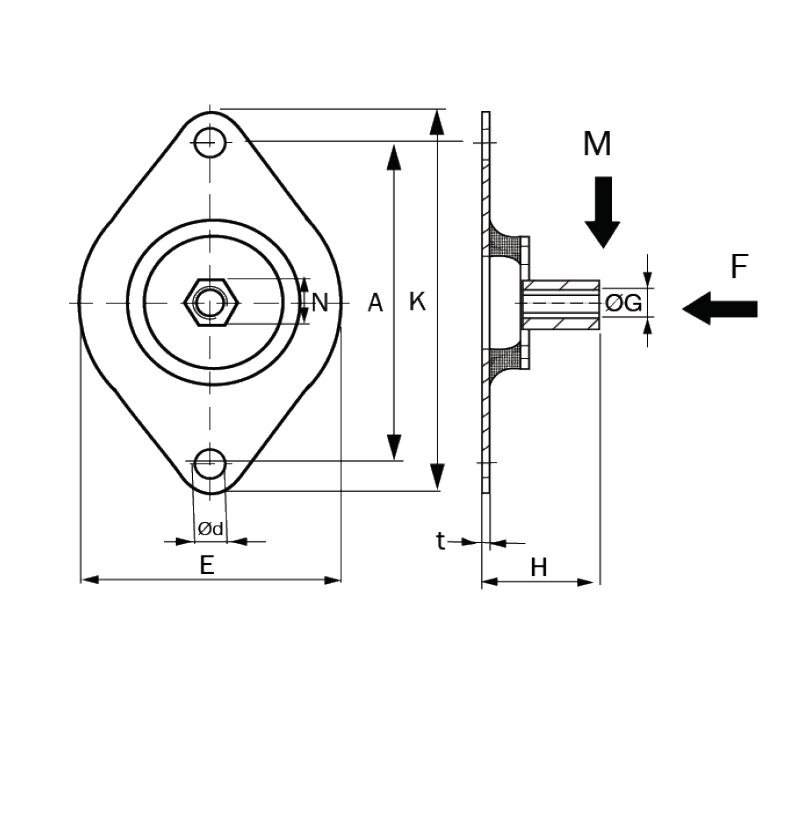

VT LOWER
