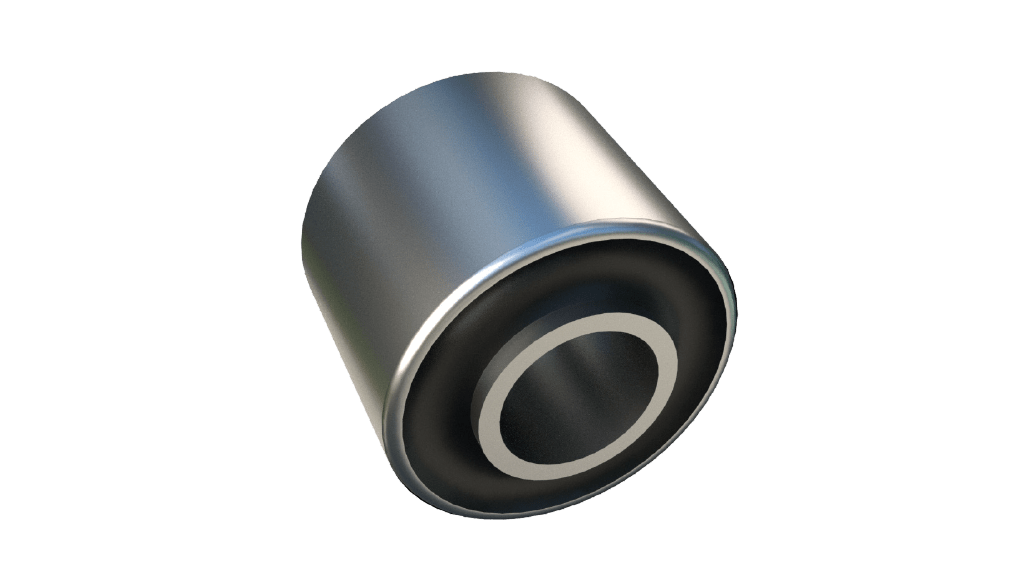

Ultra Bush and VP Bushes

The bush consists of two concentric sleeves with rubber securely bonded between them. Designed to accommodate torsional movement and axial and radial loads. The rubber is pre-stressed to give maximum dynamic strength and durability. The bonded rubber takes up full movement so lubrication or other bearing maintenance in not required. The bush has excellent sound and vibration isolation characteristics, enabling structures fitted with the Metalastik UD sleeve to be silent and vibration free.

Technical Specification

DRAWING No. PART No. TYPE DIMENSIONS (mm) RADIAL AXIAL TORSION
Ød Tolerance for Ød Housing I L STIFFNESS (N/mm) MAX LOAD (N) STIFFNESS (N/mm) MAX DEFLECTION (mm) MAX LOAD (kg) MAX TORQUE (Nm) STIFFNESS (Nm/deg) ±β (degrees)
ØD Tolerance for ØD
13-1232 20-01612 60 °IRHD 8 +0.13/-0 20 0.06/-0.01 15 17 2000 700 205 1.3 15 2 0.17 13
001 18 156 91089 40 NR 11 10 +0.036/-0 20 +0.125/-0.04 18.5 20.5 3670 1068 200 0.6 12 2.7 0.2 12.6
001 18 036 90007 60 NR 11 10 +0.036/-0 20 +0.125/-0.04 20 24 14000 2719 680 0.6 41 2 0.6 3.5
001 18 168 90122 60 NR 11 8 +0.036/-0 20 +0.125/-0.04 35 40 6750 2622 510 1.3 70 3.2 0.5 7
001 18 305 91237 60 NR 11 8 +0.036/-0 22 +0.125/-0.04 12 20 1130 437 140 1.6 23 1.1 0.2 7
001 18 156 90112 60 NR 11 10 +0.036/-0 22 +0.125/-0.04 18.5 20.5 7000 2039 450 0.6 28 2.7 0.5 5.2
001 18 337 91497 60 NR 11 10 +0.036/-0 22 +0.125/-0.04 15 16 4000 1165 280 1.0 28 2 0.6 3.5
001 18 037 90009 60 NR 11 10 +0.036/-0 22 +0.125/-0.04 20 24 7200 1748 530 1.0 53 3 0.6 5
001 18 040 90014 60 NR 11 12 +0.043/-0 22 +0.125/-0.04 24 28 6500 1262 860 0.7 60 4 0.9 4.3
13-1230 10-00249 55 °IRHD 10 +0.13/-0 24 +0.8/-0 15 18 1360 500 170 1.7 28 3 0.24 13
001 18 287 92683 60 NR 11 12 +0.043/-0 24 +0.125/-0.04 36 37 15670 4564 790 1.2 95 6 1.1 5.6
13-4127 10-00021 60 °IRHD 10 +/-0.1 25 +0.05/+0.25 25 20 2000 2300 170 4.4 76 5 0.3 15
13-4128 10-00022 60 °IRHD 10 +/-0.1 25 +0.05/+0.25 40 35 2350 3800 380 3.9 151 6 0.4 15
001 18 039 90012 40 NR 11 10 +0.036/-0 25 +0.132/-0.05 20 24 1400 680 130 1.6 21 1.2 0.2 6.6
001 18 039 90011 60 NR 11 10 +0.036/-0 25 +0.132/-0.05 20 24 3800 1845 340 1.6 55 2.9 0.4 6.6
001 18 041 90016 60 NR 11 12 +0.043/-0 25 +0.132/-0.05 24 28 8220 3593 540 1.2 65 4.7 0.9 5.4
001 18 043 90018 60 NR 11 12 +0.043/-0 28 +0.132/-0.05 24 28 4500 2622 400 1.2 48 4.2 0.7 6
001 18 043 90076 60 AEM 23 12 +0.043/-0 28 +0.132/-0.05 24 28 4500 2622 400 1.2 48 4.2 0.7 6
002 18 886 49004146 60 NR 11 12 +0.043/-0 28 +0.132/-0.05 24 28 4500 2622 400 1.2 48 4.2 0.7 6
001 18 157 90890 40 NR 11 12 +0.043/-0 30 +0.132/-0.05 17 18 580 340 90 1.4 13 1.3 0.2 7.4
001 18 044 49035877 40 NR 11 12 +0.043/-0 30 +0.132/-0.05 24 28 1580 922 160 1.4 23 2.1 0.3 7.2
001 18 157 90113 60 NR 11 12 +0.043/-0 30 +0.132/-0.05 17 18 1500 874 200 1.5 30 3 0.4 7.4
001 18 169 49035876 40 NR 11 12 +0.043/-0 30 +0.132/-0.05 36 40 1670 971 210 1.5 32 2.9 0.4 7.5
001 18 044 90019 60 NR 11 12 +0.043/-0 30 +0.132/-0.05 24 28 2750 1602 300 1.6 48 4.5 0.6 7.2
001 18 169 90123 60 NR 11 12 +0.043/-0 30 +0.132/-0.05 36 40 4000 2330 520 1.5 78 7 0.9 7.5
001 18 050 90028 60 NR 11 16 +0.043/-0 30 +0.132/-0.05 32 38 13410 5341 880 1.3 120 10 1.9 5.2
13-4273 20-02673 60 °IRHD 14.3 +0.1/-0.02 30.2 +0.04/-0.04 44.5 50.8 11000 6000 695 1.9 130 20 1.5 13
001 18 159 90117 60 NR 11 16 +0.043/-0 32 +0.16/-0.06 16 17 1830 1068 380 1.5 60 5 0.9 5.6
001 18 170 90124 60 NR 11 18 +0.043/-0 32 +0.16/-0.06 20 20 10000 3884 540 1.2 65 7.3 1.7 4.4
001 18 047 90021 60 NR 11 14 +0.043/-0 32 +0.16/-0.06 28 32 4000 2330 530 2.0 106 7 1.0 6.7
001 18 158 90115 60 NR 11 12 +0.043/-0 32 +0.16/-0.06 55 59 8440 7380 750 2.4 180 11 1.4 7.7
13-0797 10-00217 60 °IRHD 15.9 +0.1/-0.03 33.4 +0/-0.08 60.3 65 18800 9500 960 2.1 159 31 2.4 13
001 18 171 93000 40 NR 11 18 +0.043/-0 34 +0.16/-0.06 25 25 1420 1651 220 1.6 35 3.8 0.7 5.3
001 18 171 91567 60 NR 11 18 +0.043/-0 34 +0.16/-0.06 25 25 4330 2525 640 1.5 100 9.2 1.7 5.3
001 18 055 90033 60 NR 11 18 +0.043/-0 34 +0.16/-0.06 36 42 12630 4904 1050 1.2 126 13 2.5 5.3
13-4129 10-00023 60 °IRHD 15 +/-0.1 35 +0.05/+0.25 30 25 3000 3500 220 6.8 152 9 0.6 15
13-4130 10-00024 60 °IRHD 15 +/-0.1 35 +0.05/+0.25 50 45 6500 6000 520 4.8 254 15 1 15
001 18 048 90022 40 NR 11 14 +0.043/-0 35 +0.16/-0.06 28 32 1050 612 160 1.5 24 2.9 0.4 7.5
001 18 048 90023 60 NR 11 14 +0.043/-0 35 +0.16/-0.06 28 32 2670 1554 430 1.5 64 6 0.8 7.5
001 18 060 90035 60 NR 11 20 +0.052/-0 38 +0.16/-0.06 40 46 16400 7962 940 1.8 170 19 3.6 5.3
13-1782 10-00277 60 °IRHD 12.7 +0.18/-0 38.1 +0.13/-0 25.4 31.8 788 1100 163 3.3 48 11 0.52 22
13-1657 10-00271 60 °IRHD 12.7 +0.18/-0 38.1 +0.13/-0 44.5 50.8 2100 2200 300 3.3 95 16 0.73 22
001 18 054 90032 60 NR 11 16 +0.043/-0 40 +0.16/-0.06 32 38 2670 2330 400 2.5 100 10 1.2 8.1
001 18 049 90026 60 NR 11 14 +0.043/-0 40 +0.16/-0.06 28 34 750 874 330 3.6 120 7 0.8 8.6
001 18 392 91566 60 NR 11 25 +0.052/-0 40 +0.16/-0.06 30 30 21500 6312 1090 1.1 120 36 5.1 7
001 18 130 90100 60 NR 11 25 +0.052/-0 40 +0.16/-0.06 40 40 27500 10681 1230 1.1 135 22 5.5 4
001 18 130 477724 60 NBR 68 25 +0.052/-0 40 +0.16/-0.06 40 40 27500 10681 1230 1.1 135 22 5.5 4
001 18 288 91270 60 NR 11 20 +0.052/-0 40 +0.16/-0.06 36 36 10000 6117 730 2.2 160 16.6 2.8 6
001 18 061 90037 60 NR 11 20 +0.052/-0 40 +0.16/-0.06 40 46 12540 7671 820 2.2 180 19 3.2 5.9
001 18 069 90043 60 NR 11 25 +0.052/-0 40 +0.16/-0.06 50 56 57140 19420 2200 0.9 200 34 9.7 3.5
001 18 069 49004699 60 NBR 68 25 +0.052/-0 40 +0.16/-0.06 50 56 57140 19420 2200 0.9 200 34 9.7 3.5
001 18 163 90955 60 NR 11 25 +0.052/-0 42 +0.17/-0.07 22 23 5000 2913 750 1.6 120 15 3.5 4.3
001 18 224 90137 40 NR 11 20 +0.052/-0 44 +0.17/-0.07 38 42 2000 1554 280 2.9 83 7.5 1.1 7
002 18 919 49040213 45 NR 39 20 -0,15 44 +0.17/-0.07 38 42 2000 1554 280 2.9 83 7.5 1.1 7
001 18 224 91711 60 NR 11 20 +0.052/-0 44 +0.17/-0.07 38 42 5000 3884 710 2.9 210 18 2.6 7
001 18 564 54004164 60 NR 11 25.7 +0.052/-0 44.5 0 / -0,1 38 41.5 9170 5341 640 2.1 140 42 4.2 10
13-4131 10-00025 60 °IRHD 20 +/-0.1 45 +0.05/+0.25 40 35 4000 6800 330 7.9 266 24 1.6 15
13-4132 10-00026 60 °IRHD 20 +/-0.1 45 +0.05/+0.25 75 70 8000 13500 820 6.7 560 48 3.2 15
001 18 181 2118578 40 NR 11 20 +0.052/-0 45 +0.17/-0.07 30 30 1670 1457 230 1.9 45 5.8 0.8 7.1
001 18 181 91034 60 NR 11 20 +0.052/-0 45 +0.17/-0.07 30 30 4110 3593 550 2.0 110 14 2.0 7.1
001 18 064 90039 60 NR 11 20 +0.052/-0 45 +0.17/-0.07 40 46 5400 5243 650 2.6 175 19 2.6 7.4
001 18 070 90044 60 NR 11 25 +0.052/-0 45 +0.17/-0.07 50 56 18250 11167 1560 1.8 280 34 6.4 5.3
001 18 127 90094 60 NR 11 20 +0.052/-0 45 +0.17/-0.07 64 70 14580 16993 1130 3.1 360 30 4.2 7.2
13-1004 10-00235 60 °IRHD 15.9 +0.15/-0.3 47.7 +0.05/-0.08 44.5 50.8 1981 2500 304 4.2 125 26 1.3 20
001 18 173 90126 60 NR 11 30 +0.052/-0 48 +0.17/-0.07 56 62 47500 18449 1730 1.5 260 92 11.5 8
13-4133 10-00027 60 °IRHD 25 +/-0.1 50 +0.05/+0.25 45 40 4500 9000 450 8.4 385 46 3.3 14
13-4134 10-00028 60 °IRHD 25 +/-0.1 50 +0.05/+0.25 85 80 10500 18000 960 7.8 763 69 4.9 14
001 18 075 90328 40 NR 11 30 +0.052/-0 50 +0.17/-0.07 60 66 14670 8545 750 1.6 120 25 5.2 4.8
001 18 065 90040 60 NR 11 20 +0.052/-0 50 +0.17/-0.07 40 46 3420 5243 540 4.1 225 19 2.3 8.1
001 18 624 93126 60 NR 11 24 +0.052/-0 50 +0.17/-0.07 64 70 12500 9710 660 3.6 243 46 5.1 9
001 18 072 90045 60 NR 11 25 +0.052/-0 50 +0.17/-0.07 50 56 10000 9710 970 2.9 290 34 5.2 6.6
001 18 126 90093 60 NR 11 24 +0.052/-0 50 +0.17/-0.07 76 82 21250 16507 1110 2.7 300 92 6.6 14
001 18 136 92150 40 NR 11 24 +0.052/-0 50 +0.17/-0.07 102 115 15170 17672 940 3.1 300 70 4.4 15.9
001 18 075 90046 60 NR 11 30 +0.052/-0 50 +0.17/-0.07 60 66 3550 1845 1940 1.6 310 42 3.0 14
001 18 136 90102 60 NR 11 24 +0.052/-0 50 +0.17/-0.07 102 115 31250 36413 2170 2.4 520 70 10.6 6.6
002 18 005 49017278 60 NR 91 28 +0.052/-0 52 +0.21/-0.087 48 54 10000 9710 800 2.0 160 40 5.7 7
001 18 079 90052 60 NR 11 32 +0.062/-0 55 +0.21/-0.087 65 72 50500 19614 2700 2.0 540 78 19.0 4.1
001 18 645 54004214 60 NR 11 32 -0,15 56 +0.21/-0.087 49 54 13930 9467 1000 2.6 260 64 8.0 8
13-4135 10-00029 60 °IRHD 30 +/-0.2 60 +0.05/+0.25 55 45 5000 12000 530 9.6 519 78 5.6 14
3010195 54004190 60 NR 30 +0.052/-0 60 +0.21/-0.087 24 26 3550 1845 632 1.7 110 42 3.0 14
001 18 078 90051 60 NR 11 30 +0.052/-0 60 +0.21/-0.087 60 68 11820 12623 1310 2.5 340 63 9.0 7
001 18 117 49004031 40 NR 11 38 +0.062/-0 64 +0.21/-0.087 80 88 23130 17964 750 2.7 210 53 11.0 4.8
001 18 561 54004244 60 NR 11 40 +0.062/-0 64 +0.21/-0.087 43 46 15000 8739 1200 2.2 265 80 11.4 7
001 18 117 90089 60 NR 11 38 +0.062/-0 64 +0.21/-0.087 80 88 56250 43695 2640 2.7 740 130 27.1 4.8
13-4137 10-00031 60 °IRHD 35 +/-0.2 65 +0.05/+0.25 60 50 8500 16000 720 9.2 675 92 7.7 12
001 18 220 91092 40 NR 11 30 +0.052/-0 65 +0.21/-0.087 70 70 5150 6506 380 3.9 150 23 3.6 6.4
001 18 220 95300 60 NBR 68 30 +0.052/-0 65 +0.21/-0.087 70 70 12230 15439 970 3.8 380 55 8.6 6.4
001 18 220 91318 60 NR 11 30 +0.052/-0 65 +0.21/-0.087 70 70 10540 13303 1030 3.8 400 55 8.6 6.4
002 18 885 49004145 60 NR 11 30 +0.052/-0 65 +0.21/-0.087 70 70 10540 13303 1030 3.8 400 55 8.6 6.4
001 18 088 90060 60 NR 11 40 +0.062/-0 65 +0.21/-0.087 80 88 50000 19420 2260 2.7 625 130 27.7 4.7
001 18 084 90057 60 NR 11 36 +0.062/-0 65 +0.21/-0.087 72 80 19240 19614 1810 3.5 650 96 16.6 5.8
13-4139 10-00033 60 °IRHD 40 +/-0.2 70 +0.05/+0.25 65 55 17000 20500 870 9.5 843 138 11.5 12
13-1698 10-00276 60 °IRHD 35 +0.1/-0.07 71.2 +0.05/-0.08 41.1 45 3800 4500 347 5.1 220 97 6.9 14
001 18 716 49012091 60 NR 11 57 +0.074/-0 73 +0.021/-0.002 62 71 115000 43307 3500 2.0 700 200 66.7 3
13-4141 10-00035 60 °IRHD 45 +/-0.2 75 +0.05/+0.25 70 60 20000 24000 1100 9.1 1020 240 20 12
001 18 090 90061 60 NR 11 40 +0.062/-0 75 +0.22/-0.1 80 88 18670 27188 1370 3.4 480 130 19.4 6.7
001 18 093 90063 60 NR 11 45 +0.062/-0 75 +0.22/-0.1 90 100 55580 64766 2260 3.5 815 185 36.3 5.1
001 18 285 91820 60 NR 11 42 +0.062/-0 78 +0.22/-0.1 45 45 8480 13594 1070 4.3 470 85 14.2 6
13-4143 10-00037 60 °IRHD 50 +/-0.2 80 +0.05/+0.25 75 65 30000 28500 1350 8.9 1225 275 25 11
001 18 297 91424 60 NR 11 45 +0.062/-0 80 +0.22/-0.1 45 45 7250 8448 870 2.9 260 90 15.5 5.8
001 18 095 93394 60 NBR 68 50 +0.062/-0 80.0 +0.22/-0.1 100 110 94440 82535 3750 2.4 900 300 68.2 4.4
001 18 095 90066 60 NR 11 50 +0.062/-0 80 +0.22/-0.1 100 110 94440 82535 3750 2.4 900 300 68.2 4.4
001 18 141 49039427 45 NR 11 58 +0.074/-0 93 +0.34/-0.13 85 95 15500 15051 1100 2.9 330 140 29.8 4.7
001 18 141 90106 60 NR 11 58 +0.074/-0 93 +0.34/-0.13 85 95 33000 32043 2330 2.9 700 281 59.8 4.7
001 18 360 90900 60 NR 11 50 +0.062/-0 95 +0.26/-0.12 100 110 25450 40782 2180 4.3 960 255 38.1 6.7
001 18 489 54004359 60 NR 11 75 +0.074/-0 100 +0,125/-0,025 50 50 56000 27188 2750 2.0 550 248 91.9 2.7
001 18 097 90070 60 NR 11 50 +0.062/-0 100 +0.26/-0.12 100 110 17250 33500 1650 6.1 1026 255 35.9 7.1
001 18 102 96921 40 NR 11 50 +0.062/-0 125 +0.42/-0.17 138 195 5600 15536 800 6.7 550 180 17.1 10.5
001 18 485 54004365 70 NR 11 80 +0.074/-0 125 +0.33/-0.17 107 102 52870 56473 2980 4.2 1280 808 144.3 5.6
001 18 102 96141 60 NR 11 50 +0.062/-0 125 +0.42/-0.17 138 195 12600 33985 1700 7.5 1300 550 52.4 10.5
001 18 318 92770 60 NR 11 70 +0.074/-0 126 +0.33/-0.17 111 120 52000 50492 3200 4.9 1600 610 122.0 5
001 18 772 96165 60 NR 11 100 +0.087/-0 140 +0.42/-0.17 110 120 116360 124288 5100 2.8 1480 1045 316.7 3.3
001 18 641 54004357 60 NR 11 75 +0.074/-0 141 +0,2 155 165 73530 121375 2880 6.6 1930 1840 175.2 10.5
001 18 802 96246 60 NR 11 110 +0.087/-0 160 +0.44/-0.19 170 180 110000 160215 6000 4.9 3000 1850 440.5 4.2
001 18 805 96248 60 NR 11 124 +0.01/-0 180 +0.46/-0.21 220 230 440000 388400 10750 3.9 4300 3000 1000.0 3
001 18 805 96247 70 NR 11 124 +0.01/-0 180 +0.46/-0.21 220 230 460000 446660 15000 3.9 6000 4600 1533.3 3
001 18 531 93059 60 NR 11 136 +0.01/-0 218 +0.44/-0.26 201.6 235 130000 252460 7500 0.7 525 4700 1000.0 4.7
001 18 531 480706 60 NBR 68 136 +0.01/-0 218 +0.44/-0.26 201.6 235 130000 252460 7500 6.9 5250 4700 1000.0 4.7
001 18 440 54004068 60 NR 11 16 +0.01/-0 30 +0.132/-0.05 25 25 5750 2233 520 1.3 67 13.7 1.2 11
002 18 919 49040227 60 NR 11 20 -0,15 44 +0.17/-0.07 38 42 5000 3884 710 2.9 210 18 2.6 7
002 18 920 49040214 45 NR 97 25 -0,15 55 +0.17/-0.07 55 60 4000 3884 380 2.6 100 17 2.5 6.8
002 18 920 49040228 60 NR 11 25 -0,15 55 +0.21/-0.087 55 60 8000 7768 1000 2.6 260 35 5.1 6.8

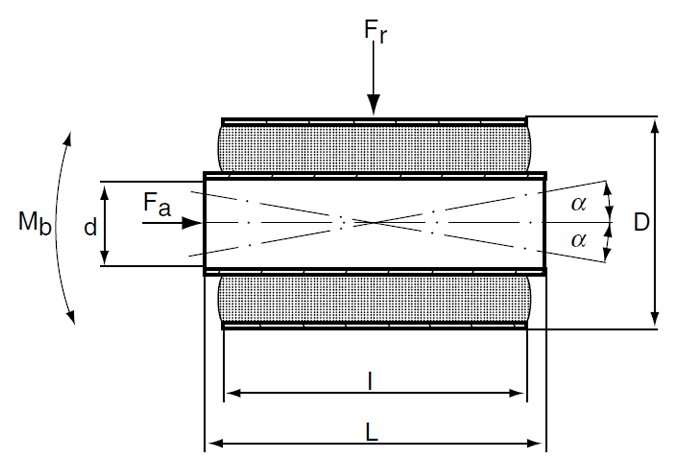

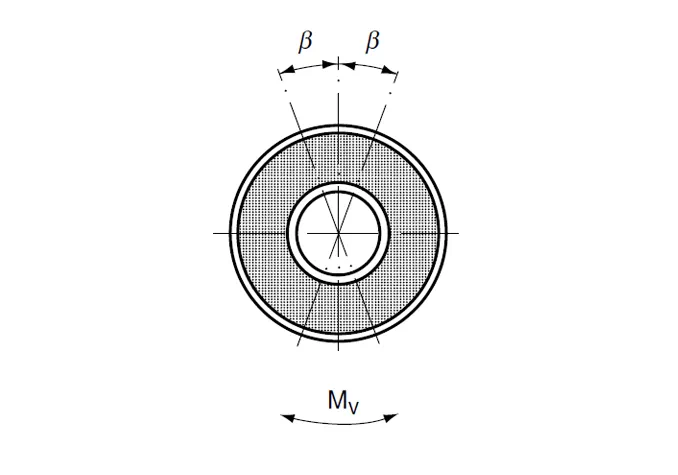

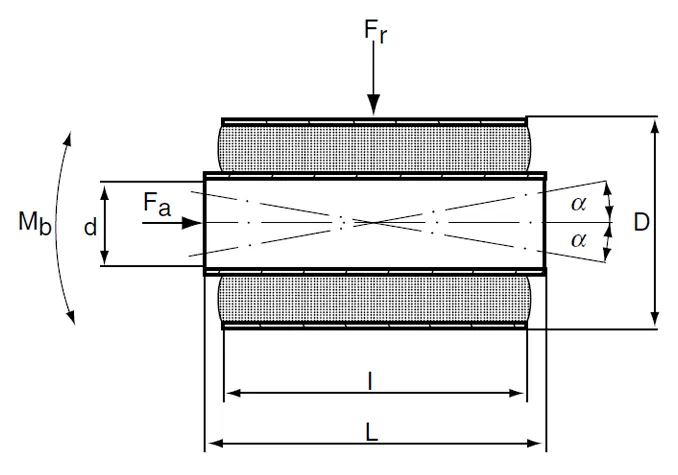

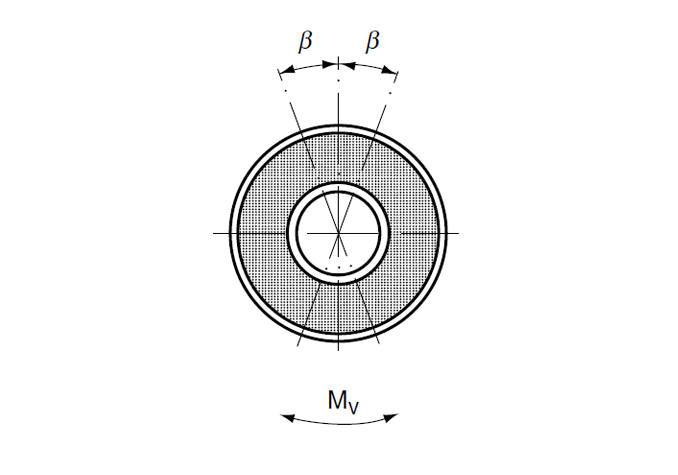

technical drawing
