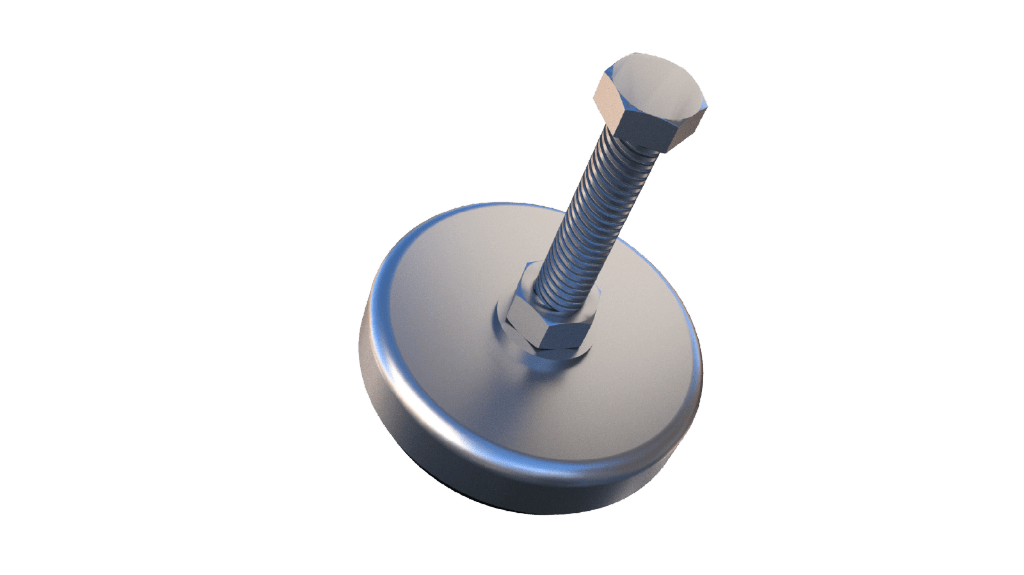

Level-Mount-TF

Level Mount (TF)

  • Suitable for a wide range of free-standing workshop machines
  • Oil and chemical resistant
  • Simple installation
Contact Us

Product Description


The Level Mount is installed in minutes by following the instructions provided. There is no need to fix the machine to the floor since the rubber base of the mounting keeps the machines in place. Whenever necessary, the machine can be easily re-positioned. The level is adjusted with load applied.

The rubber element of the level mount is oil and chemical resistant. All metal parts are zinc-plated and chromated for protection against corrosion.

Models TF 250, TF 600 and TF 1200 are also available in S/S (ISO 2604/11, BS 3605:1).

The mount, with level adjuster, is suitable for a wide range of free standing workshop machines.

Typical applications include:

  • Lathes and Milling machines
  • Grinding machines
  • Presses
  • Plate shears
  • Nibbling machines
  • Punches and cutters

Product Data

TF MOUNT

REFERENCE DRAWING NO. PART NO. DIMENSIONS (mm) OVERALL BOLT
LENGTH (mm)
MAX. LOAD (KN)
ØD H G
TF 250 19-0588 20-00623 69 23 M12 100 2.5
M80 050 18 023 96504 80 30 M12 80 1.2
96505 2
96506 3
96507 3.5
M120 050 18 020 96496 120 37 M12 100 5
96497 6
96498 8
TF 600 19-0583 20-00624 81 25 M12 100 6
TF 1200 19-0577 20-00625 108 29 M16 100 12
M160 050 18 021 96499 160 41 M16 120 9.2
96500 13.5
96501 18
M160 050 18 704 49039496 160 41 M16 140 9.2
49039497 13.5
49014539 18
M185 050 18 022 96502 185 48 M20 160 26
96503 55
TF 3000 19-0591 20-00626 151 35 M20 120 30
TF 4000 19-0596 20-00627 170 39 M20 120 40
TF 6000 19-0598 20-00628 205 44 M24 150 60

TFE MOUNT

REFERENCE DRAWING NO. PART NO. DIMENSIONS (mm) MAX. LOAD (KN)
ØD H
TFE 601 19-0571 20-00629 80 25 8.0

Technical Drawing

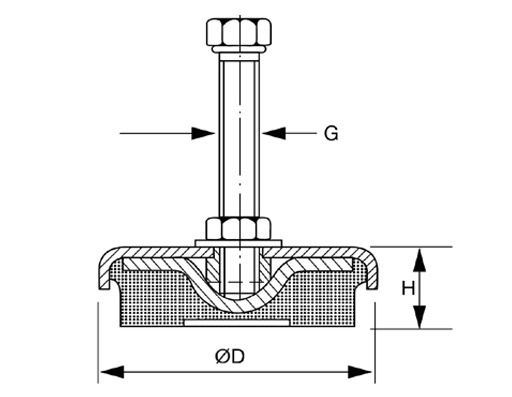

level-mount_drawing-1

TF

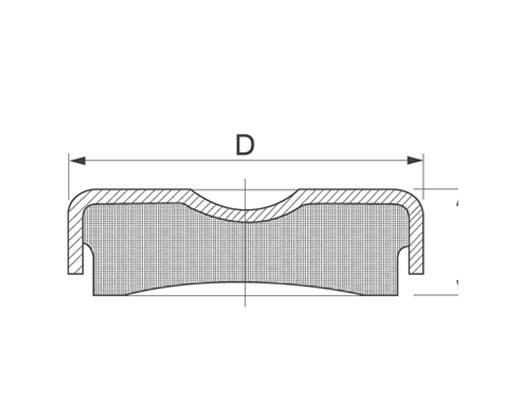

level-mount_drawing-2

TFE
