EH Mount

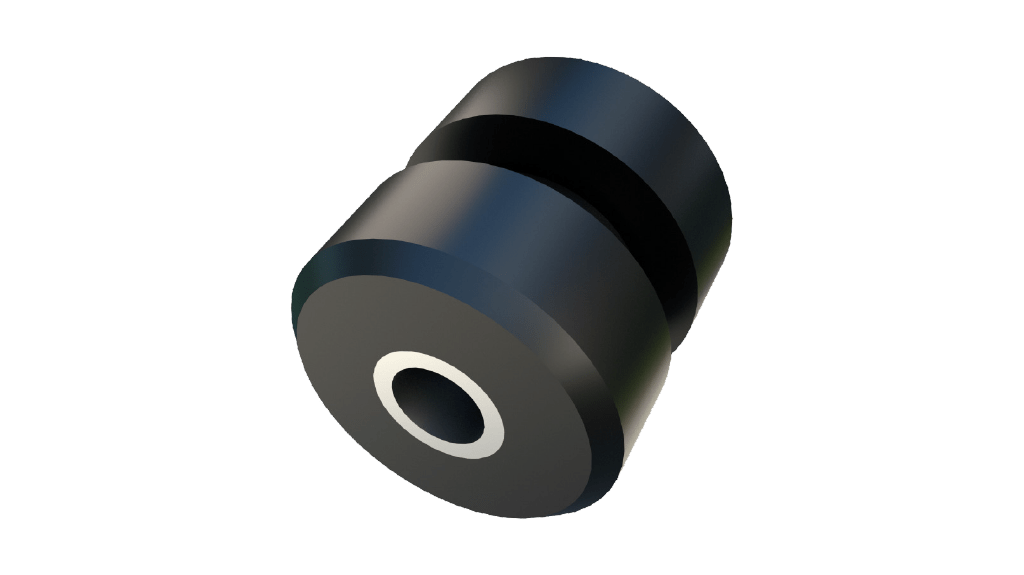

Product Description

The EH is designed primarily for mobile applications where high dynamic and shock forces are encountered. Dynamic vertical movements in both directions are restricted and excellent horizontal stability is provided.

The function of EH includes features as:
• Dynamic efficiency in all directions
• Attenuation of structure-borne noise
• Accommodation of misalignment and distortion
• Simple design-easy to install
• Fail-safe installation
• Wide load range, 40 to 1200 kg

Typical applications include:
• Military vehicles
• Agriculture vehicles
• Construction equipment
• Transport machinery
• Industrial mobile machinery

Product Data

TYPE	DRAWING No.	PART No.	Hardness	DIMENSIONS (mm)											AXIAL STIFFNESS (N/mm)	MAX LOAD (kg)	BOLT SIZE	MAX BOLT TORQUE (Nm)	WASHER PART No.

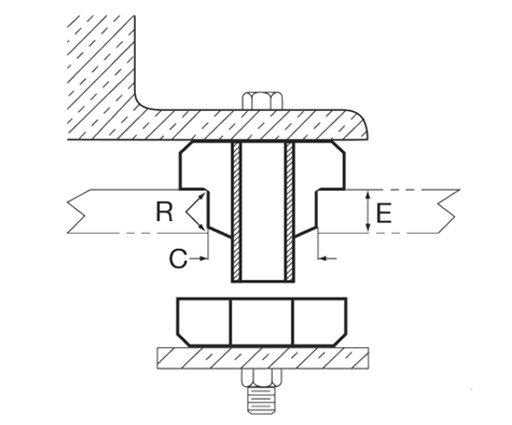

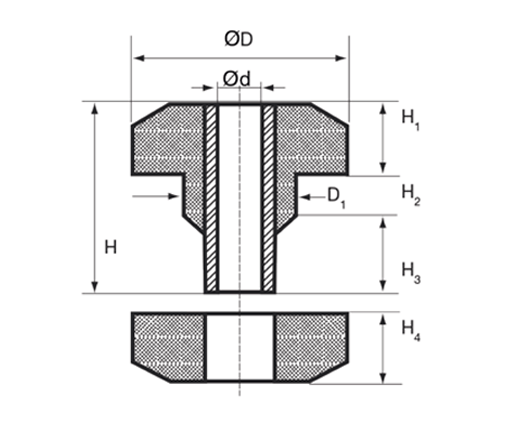

TYPE	DRAWING No.	PART No.	Hardness	Ød	ØD	ØD1	H	H1	H2	H3	H4	C	E	R	AXIAL STIFFNESS (N/mm)	MAX LOAD (kg)	BOLT SIZE	MAX BOLT TORQUE (Nm)	WASHER PART No.
039 18 799/111		60900572	50 NR511	8.1	22	-	17	-	-	-	-	13.5	4	-	400	25	M6 8.8 / M8 5.6	9,9 / 11	-
039 18 799/111		60900531	50 CR 57	8.1	22	-	17	-	-	-	-	13.5	4	-	400	25	M6 8.8 / M8 5.6	9,9 / 11	-
EH	55-1070-1	20-02654	40 °IRHD (CR)	10	33	20	32	12	6.5	13	12	19	10	1	-	40	M10	25	20-02816
039 18 799/111		60900533	60 CR 57	8.1	22	-	17	-	-	-	-	13.5	4	-	730	45	M6 8.8 / M8 5.6	9,9 / 11	-
EH 4850	19-0213-1	20-00621	40 °IRHD	13	50	32.6	50	20	10	20	20	31.8	15	1.5	430	60	M12	40	20-00416
EH 4850	19-0213-1	20-01504	40 °IRHD (CR)	13	50	32.6	50	20	10	20	20	31.8	15	1.5	430	60	M12	40	20-00416
039 18 754		49011344	42 CR	13.5	48	33	50	20.5	-	-	19.5	33.5	12	-	200	80	M10 8.8 / M12 5.6	47 / 39
EH	55-1070-1	20-02901	60 °IRHD	10	33	20	32	12	6.5	13	12	19	10	1	-	90	M10	25	20-02816
EH 6463	19-0214-1	20-00619	40 °IRHD	17	64	40	62	23	14	25	23	39	22	2.3	585	90	M16	80	20-01495
039 18 753/111		49031354	40 CR	9	33	20	30	11	-	-	11	20.5	9	-	270	97	M6 6.8 / M8 5.6	7,5 / 11	-
039 18 755		49012351	42 CR	13.5	48	31.5	50	20.5	-	-	19.5	31.5	13	-	335	100	M10 8.8 / M12 5.6	47 / 39	-
EH 4850	19-0213-1	20-00620	60 °IRHD	13	50	32.6	50	20	10	20	20	31.8	15	1.5	865	100	M12	40	20-00416
EH 4850	19-0213-1	20-01510	60 °IRHD (CR)	13	50	32.6	50	20	10	20	20	31.8	15	1.5	865	100	M12	40	20-00416
EH 6463	19-0214-1	20-02499	50 °IRHD	17	64	40	62	23	14	25	23	39	22	2.3	900	130	M16	80	20-01495
039 18 765		49029937	45 CR 57	9	48	33	50	20.5	-	-	19.5	33.5	13	-	340	136	M8 12.9	40	-
039 18 765		49038236	50 CR 57	9	48	33	50	20.5	-	-	19.5	33.5	13	-	420	170	M8 12.9	40	-
EH 4850	19-0213-1	20-02656	75 °IRHD (CR)	13	50	32.6	50	20	10	20	20	31.8	15	1.5	146	175	M12	40	20-00416
039 18 755		2129379	55 CR	13.5	48	31.5	50	20.5	-	-	19.5	31.5	13	-	600	180	M10 8.8 / M12 5.6	47 / 39	-
039 18 754		511454	64 CR	13.5	48	33	50	20.5	-	-	19.5	33.5	12	-	470	190	M10 8.8 / M12 5.6	47 / 39	-
EH 6463	19-0214-1	20-00618	60 °IRHD	17	64	40	62	23	14	25	23	39	22	2.3	1420	200	M16	80	20-01495
EH 9075	19-0727-1	20-00617	40 °IRHD	23	89	58	73	25	19	29	25	57.2	28	3	1056	200	M22	200	20-00533
039 18 768		49038161	45 CR	16.7	64.8	40.1	61.7	22.9	-	-	22.9	40.6	20	-	545	220	M12 5.6	39	-
EH 9075	19-0727-1	20-02835	45 °IRHD (CR)	23	89	58	73	25	19	29	25	57.2	28	3	1330	230	M22	200	20-00533
039 18 773		49043630	50 CR	14	64.8	-	61.7	-	-	-	-	40.6	20	-	650	260	M12 10.9	105	-
039 18 765		49038235	60 CR 57	9	48	33	50	20.5	-	-	19.5	33.5	13	-	730	290	M8 12.9	40	-
EH 9075	19-0727-1	20-02836	50 °IRHD (CR)	23	89	58	73	25	19	29	25	57.2	28	3	1800	295	M22	200	20-00533
EH 6463	19-0214-1	20-01860	70 °IRHD	17	64	40	62	23	14	25	23	39	22	2.3	2087	300	M16	80	20-01495
039 18 755		511452	64 CR	13.5	48	31.5	50	20.5	-	-	19.5	31.5	13	-	1030	310	M10 8.8 / M12 5.6	47 / 39	-
EH 9075	19-0727-1	20-02837	55 °IRHD (CR)	23	89	58	73	25	19	29	25	57.2	28	3	2200	370	M22	200	20-00533
039 18 755		49003069	75 CR	13.5	48	31.5	50	20.5	-	-	19.5	31.5	13	-	1300	390	M10 8.8 / M12 5.6	47 / 39	-
039 18 766		49042472	45 CR 57	21	89	58.4	73	25.4	-	-	23	58.9	29	-	980	390	M16 5.8 / M20 4.6	126 / 147	-
039 18 766		49033624	45 CR 57	21	89	58.4	73	25.4	-	-	23	58.9	29	-	980	390	M16 5.8 / M20 4.6	126 / 147	Included
039 18 773		60905067	60 CR	14	64.8	-	61.7	-	-	-	-	40.6	20	-	1000	400	M12 10.9	105	-
039 18 766		49042473	50 CR 57	21	89	58.4	73	25.4	-	-	23	58.9	29	-	1060	420	M16 5.8 / M20 4.6	126 / 147	-
039 18 766		49036771	50 CR 57	21	89	58.4	73	25.4	-	-	23	58.9	29	-	1060	420	M16 5.8 / M20 4.6	126 / 147	Included
EH 9075		20-00616	60 °IRHD	23	89	58	73	25	19	29	25	57.2	28	3	2400	450	M22	200	20-00533
EH 9075		20-01508	60 °IRHD (CR)	23	89	58	73	25	19	29	25	57.2	28	3	2400	450	M22	200	20-00533
039 18 765		49038234	75 CR 57	9	48	33	50	20.5	-	-	19.5	33.5	13	-	1160	460	M8 12.9	40	-
039 18 768		49038160	60 CR	16.7	64.8	40.1	61.7	22.9	-	-	22.9	40.6	20	-	1230	490	M12 5.6	39	-
039 18 753/111		49044363	75 CR	9	33	20	30	11	-	-	11	20.5	9	-	1450	522	M6 6.8 / M8 5.6	7,5 / 11	-
039 18 766		49042474	60 CR 57	21	89	58.4	73	25.4	-	-	23	58.9	29	-	1600	640	M16 5.8 / M20 4.6	126 / 147	-
039 18 766		49036770	60 CR 57	21	89	58.4	73	25.4	-	-	23	58.9	29	-	1600	640	M16 5.8 / M20 4.6	126 / 147	Included
EH 1127	13-4109-1	20-02876	70 °IRHD	37.8	124	64.8	85.9	31.8	22.3	31.8	31.8	64	31.8	4	6497	1750	M24	300	CONTACT FOR DETAILS
039 18 766		49042475	75 CR 57	21	89	58.4	73	25.4	-	-	23	58.9	29	-	5200	2000	M16 5.8 / M20 4.6	126 / 147	-
039 18 766		49036769	75 CR 57	21	89	58.4	73	25.4	-	-	23	58.9	29	-	5200	2000	M16 5.8 / M20 4.6	126 / 147	Included
039 18 774		49045418	60 CR	25	124	-	87	-	-	-	-	64.5	28	-	5612	2250	M20 5.6 / M24 4.6	184 / 255	-
