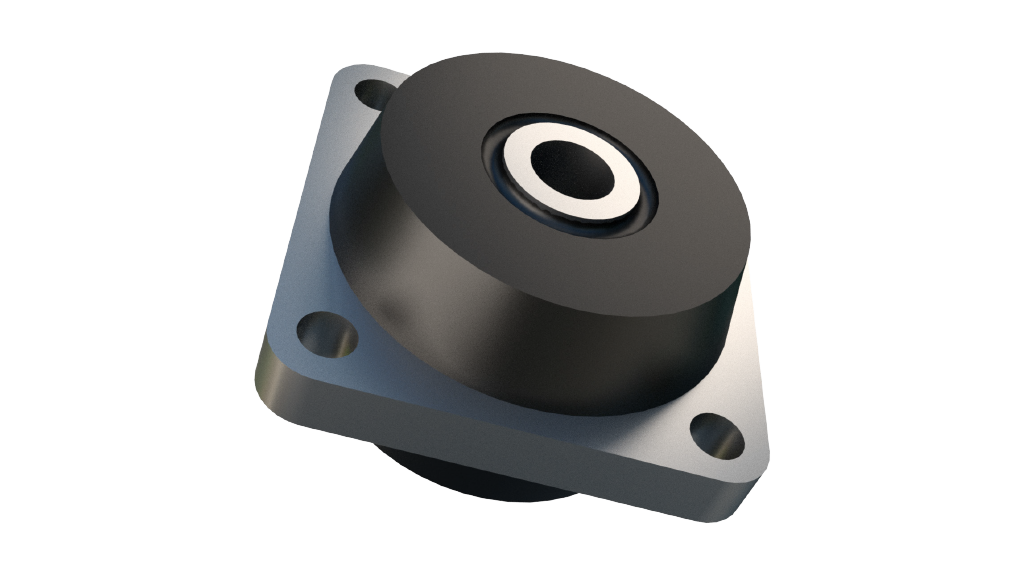

Product Description

The CAB mount has been designed to provide optimum suspension characteristics. This has been achieved through ensuring the Compression and Shear stiffness characteristics being relatively stiff in their respective directions. The CAB mounts can withstand small shock loadings to help improve driving conditions for the operator. The mount should be installed with washers top and bottom to ensure a failsafe system.

Product Data

DRAWING No. PART No. Type DIMENSIONS (mm) AXIAL MAX LOAD (kg) BOLT SIZE MAX BOLT TORQUE (Nm) AXIAL STIFFNESS (N/mm) WASHER PART NO.
 ØD
  ØB
  ØC
  Ød
  E  F G   H  K  L
STANDARD CAB MOUNT
11-1028 20-00875 45 °IRHD 59 - 80 16 - 20 - 40 16 80 75 M16 250 390 20-00532
20-01109 60 °IRHD 150 780
20-01035 65 °IRHD 180 950
11-1027 20-01107 45 °IRHD 59 - 80 20 - 20 - 40 16 80 75 M20 380 390 20-00003
20-00002 50 °IRHD 95 495
20-01061 55 °IRHD 120 626
20-00874 65 °IRHD 180 950
17-1671-1 10-00563 45 °IRHD 75 100 105 16.5 17 19 22 46 20 105 160 M16 180 330 20-00533
17-1997-1 10-00626 45 °IRHD 75 100 105 16.5 17 19 22 46 20 105 190 M16 180 600 20-01494
17-1650 10-00552 45 °IRHD 75 100 105 22 17 19 22 46 20 105 300 M20 180 464 20-00533
10-00944 60 °IRHD 500 1200
17-1650-1 10-00554 45 °IRHD 75 100 105 16.5 17 19 22 46 20 105 300 M16 180 464 20-00533
10-00555 60 °IRHD 500 1200
17-1814 10-00598 45 °IRHD 89 115 120 25 23 13 21 47 25 120 410 M24 270 1797 20-00534
10-00603 60 °IRHD 760 3314
10-04461 70 °IRHD 1120 4870
058 18 001 91928 45 NR 11 SEE DRAWINGS 210 M12 35 300 93950
90827 60 NR 11 430 620
92539 70 NR11 630 900
BOLTED CAB MOUNT
17-0890 10-00440 45 °IRHD SEE DRAWINGS 300 M16 250 1027 20-00532
10-00441 60 °IRHD 500 1693
10-00442 70 °IRHD 750 2000

Technical Drawing

Cab-Mounts-Standard

Standard cab mount | 058 18 001

Cab-Mounts-Bolted

Bolted cab mount | Typical fitting arrangement
