Patented Waveband technology creates a more effective seal by concentrating the compressive force of the expansion band. The rubber is "captured" between the band and concrete.
Installation requires a 1/2" socket wrench & preset torque limiter
Adapters are required when using Corrugated Pipe.
Refer to the Corrugated Pipe Adapter Datasheet for details.
206 Series - for pipe sizes 15"-51" in diameter.
306 Series - to fit larger pipe into smaller diameter manholes.
506 Series - designed specifically for stormwater applications.

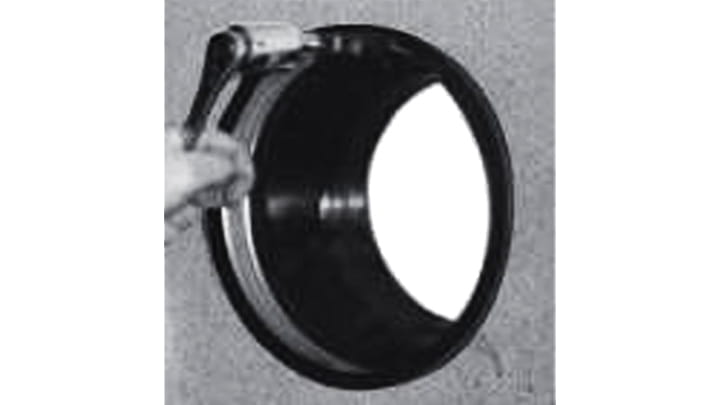

Connectors with 8" hole size and smaller: Steel Wedge - 1/2" Socket Wrench - 8 ft. Ibs.
Connectors with 10-20" hole sizes: EX Series - 1/2" Socket Wrench - 12-20 ft. Ibs. Steel Wedge - 1/2" Socket Wrench - 12 ft. Ibs.

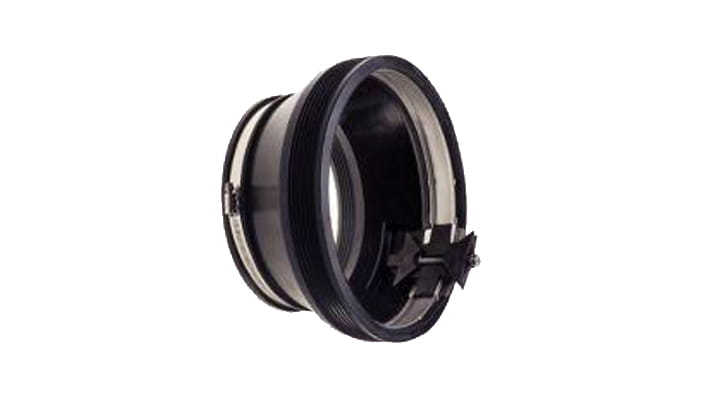

The 106 Series connector is 8 inches long, the 406 Series connector is 6 inches long.
The number following the hyphen in our model numbers is the required hole size.
The S-106-20 Series is available in Stainless Steel Wedge only.
