Sizing Chart
| P/N |
Pipe O.D. Range (inches) |
Hole Size Range (inches) | Connector Dimensions (inches) | Pipe Clamp P/N |
||

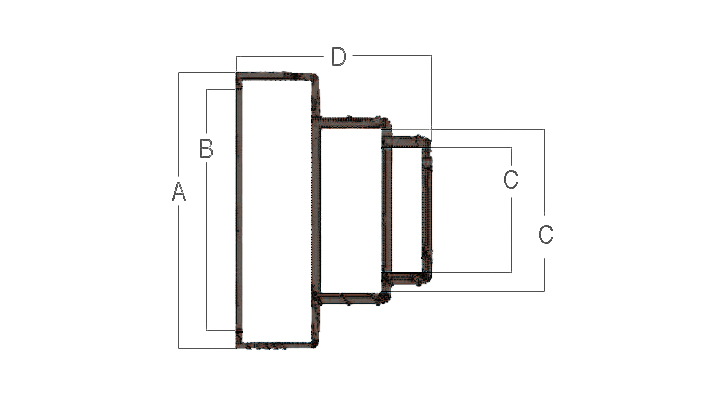

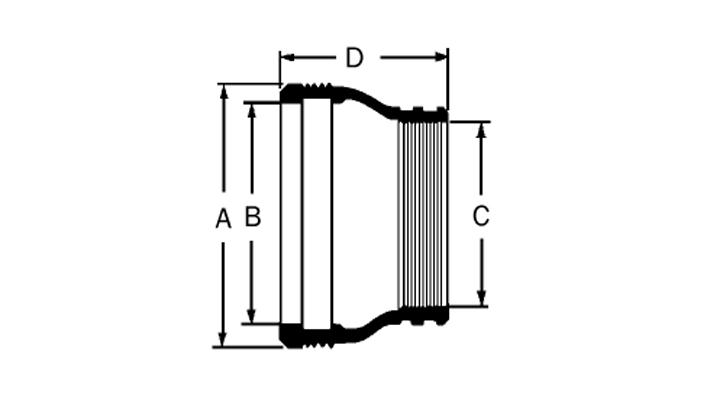

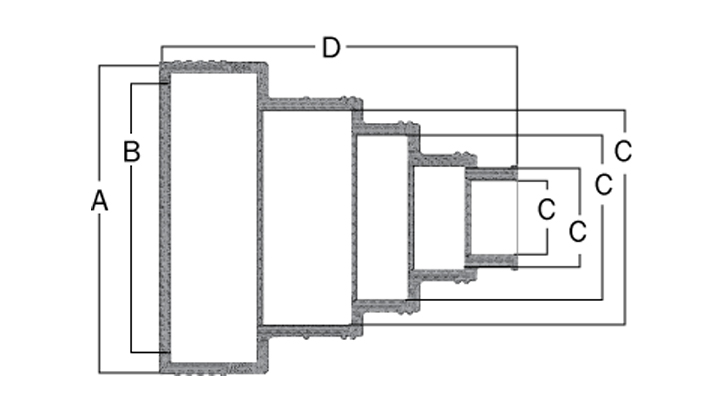

| A | B | C | D | |||
|
S106-7MWS S106-7MT |
1.5 - 1.8 1.9 - 2.4 3.2 - 3.8 3.8- 4.8 |
6.995-7.055 | 6.125 | 1.6 2.3 3.6 4.8 |
7.8 | I-80 |
|
S106-7WS S106-7T |
3.5 - 4.5 | 6.995-7.055 | 6.125 | 4.5 | 6 | I-80 |
|
S106-8WS S106-8T |
5.1 - 5.9 | 7.995-8.055 | 7.125 | 5.5 | 8 | I-128 |
| S106-8SRWS S106-8SRT |
4.2 - 4.8 6.2 - 6.4 |
7.995-8.055 | 7.125 | 4.3 6.4 |
7.5 | I-128 |
| S106-8MWP-EX | 1.5 - 1.8 1.9 - 2.4 3.2 - 3.8 3.8 - 4.8 |
7.995-8.055 | 6.83 | 1.6 2.3 3.6 4.8 |
9.19 | I-80 |
| S106-12MWP-EX S106-12MWS S106-12MT |
3.5 - 4.8 6.2 - 6.9 |
12.04 - 12.20 12.00 -12.20 12.04 - 12.13 |
10.125 | 4.5 6.5 |
8 | I-128 |
Connector Installation Instructions
For wedge Korband
Check to be sure the Korband is properly located in Connector groove.
Inspect the inside surface of the cored hole. If there is porosity or wire-to-concrete separation, use patching or hydraulic cement to smooth the surface.
Insert Connector Assembly into hole with Wedge Expander at top of hole.
Position Connector so it is square to manhole both vertically and horizontally.
Wedge Expander for 7” & 8” holes should be tightened as follows:
- Stainless Steel Wedge - 8 ft. lbs.
- EX Plastic Wedge - 12 ft. Ibs.
12” holes should be tightened as follows:
- Stainless Steel Wedge - 12 ft. lbs.
- Ex Plastic Wedge - 12-ft. lbs.
Retorquing is not required prior to shipment.
For Toggle Korband 7” & 8”
- Insert the Korband Expander Assembly (P/N 90225) under the Korband Toggle and rotate the hex by hand to ensure that the Expander is properly engaged. (The 8” Toggle requires a foot extension (P/N 13808)
- Insert the Connector and Expander into the cored or formed opening from inside the manhole.
- Using a wrench, rotate the hex rod until the Korband Toggle is expanded well past center and is firmly seated against the Connector
Pipe Installation
Installation instructions
- To size the connector for the desired pipe O.D. Using a knife, carefully remove the un-needed section of the connector by cutting within the appropriate groove
- Be sure sealing area of pipe is smooth and free of defects. Repair if needed
- Center pipe in Connector opening. (Pipe must not rest on Connector Korband)
- Position the Pipe Clamp in the Connector’s Pipe Clamp groove with the screw at the top.
- Tighten the Pipe Clamp screw to 60 inch pounds with a T-handle Torque Wrench, P/N 80090
Installation Tools
Pipe Clamps

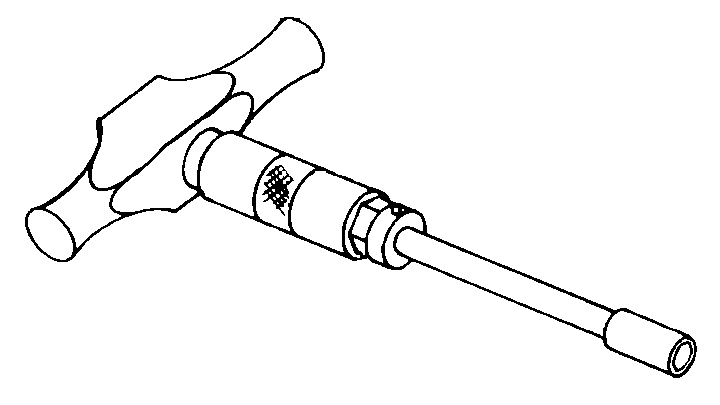

P/N 80090 T-Handle
Torque Wrench
Toggle Korband
For 7” and 8” Toggle Korband

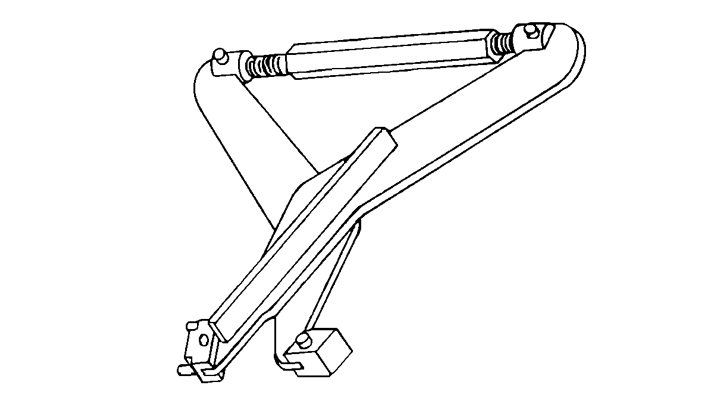

P/N 90225 Expander Assembly
For S106-12MT
P/N 91910 Hydraulic Jack
