Hose assembly design
Overview

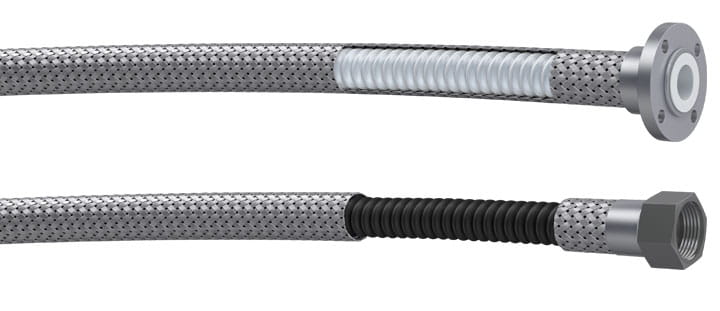

Inner tube
helically convoluted PTFE, white or black (antistatic), compliant with FDA 21 CFR 177.1550, USP Class VI requirements, and EU regulation 1935/2004
Braid(s)
high tensile 304 stainless steel or polypropylene.
Other qualities, like PVDF, or finish, like EPDM or silicone coating, upon request
Other qualities, like PVDF, or finish, like EPDM or silicone coating, upon request
Temperature range
-70°C to +260°C
Diameter range
available from ¼″ (6mm) up to 6″ (150mm)
Diameter range
White = Type M: R<100Ω between couplings with stainless steel braids.
Black = Type Ω: 1KΩ
Black = Type Ω: 1KΩ
Couplings & Fittings
Made to order with any types of fittings, stainless steel or PTFE coated, including flare through ends for flanges.
Technical Specifications
1 steel high tensile braid
| ID inch | ID mm | Bending adius mm | Working pressure bar | Bursting pressure bar 20°C | Vacuum mbar 20°C | Max length | Weight gr/m |
| 1steel high tensile braid | |||||||
| 1/4" | 6 | 12 | 35 | 170 | 744 | 20 | 122 |
| 3/8" | 10 | 24 | 35 | 170 | 744 | 20 | 168 |
| 1/2" | 13 | 29 | 60 | 250 | 887 | 20 | 197 |
| 5/8" | 16 | 35 | 55 | 170 | 887 | 20 | 302 |
| 3/4" | 20 | 59 | 60 | 290 | 887 | 20 | 372 |
| 1" | 25 | 71 | 40 | 210 | 887 | 20 | 604 |
| 1 1/4" | 32 | 94 | 40 | 210 | 887 | 20 | 723 |
| 1 1/2" | 38 | 118 | 35 | 175 | 887 | 20 | 1062 |
| 2" | 50 | 147 | 25 | 135 | 887 | 20 | 1282 |
| 2 1/2" | 63 | 230 | 16 | 80 | 887 | 20 | 2140 |
| 3" | 75 | 260 | 14 | 65 | 887 | 20 | 3310 |
| 4" | 100 | 300 | 10 | 40 | 887 | 20 | 4050 |
| 5" | 127 | 450 | 6 | 24 | 554 | 12 | 5500 |
| 6" | 150 | 520 | 6 | 24 | 554 | 12 | 6000 |
Technical Specifications
Polypropylene braid, max +90°C
| ID inch | ID mm | Bending adius mm | Working pressure bar | Bursting pressure bar 20°C | Vacuum mbar 20°C | Max length | Weight gr/m |
|
Polypropylene braid, max +90°C
|
|||||||
| 1/4" | 13 | 50 | 40 | 160 | 887 | 10 | 189 |
| 5/8" | 16 | 65 | 30 | 120 | 887 | 10 | 259 |
| 3/4" | 20 | 55 | 30 | 120 | 887 | 10 | 243 |
| 1" | 25 | 85 | 30 | 120 | 887 | 10 | 345 |
| 1 1/4" | 32 | 100 | 25 | 100 | 887 | 10 | 531 |
| 1 1/2" | 38 | 120 | 22 | 88 | 887 | 10 | 607 |
| 2" | 50 | 165 | 20 | 80 | 887 | 10 | 930 |
| 2 1/2" | 63 | 230 | 16 | 64 | 887 | 10 | 1028 |
| 3" | 75 | 260 | 14 | 50 | 887 | 10 | 1186 |
| 4" | 100 | 300 | 10 | 40 | 887 | 10 | 2710 |
